Sure Flow YT6 2" Cast Steel NPT Y Strainer
Sure Flow YT6 2" Cast Steel NPT Y Strainer
SKU:YST-931702
Sure Flow YT6 2" Cast Steel NPT Y Strainer - Up to 1480 psi, Removable Stainless Steel Screen, ISO 9001:2008 Certified
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow YT6 2" Cast Steel NPT Y Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6 2" Cast Steel NPT Y Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6 2" Size Cast Steel NPT Y Strainer is designed for high-pressure applications up to 1480 psi for Water, Oil, or Gas. Featuring a machined, tapered seat for a perfect fit, a removable stainless steel screen, blow-off feature, and plug for convenient maintenance. This Y strainer meets ASTM A216 Grade WCB Cast Steel construction standards and is ISO 9001:2008 certified for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
3/4 in

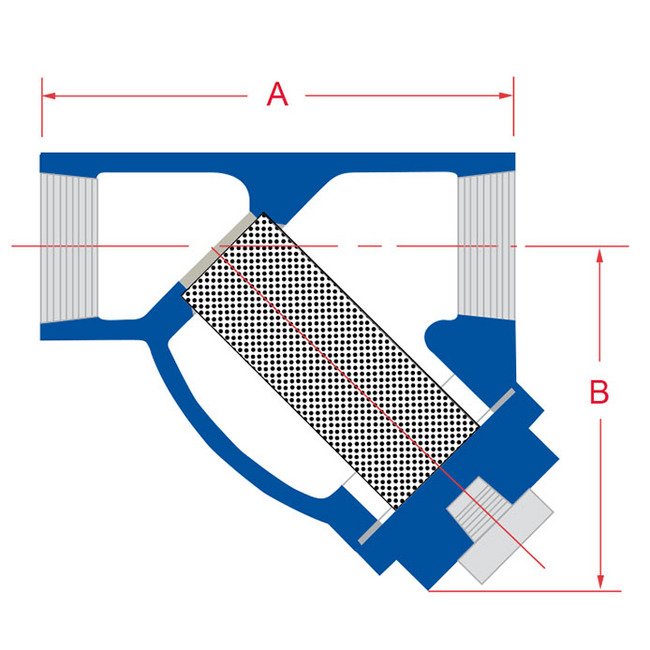

Dimensions Dimension A
7 5/8 in
Dimensions Dimension B
6 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
18 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
