Sure Flow YT6 3/4" Cast Steel NPT Y Strainer

Name: Sure Flow YT6 3/4" Cast Steel NPT Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-ebbd95
Price: 79.99 USD
Availability: OutOfStock

SKU:YST-ebbd95

Reliable Sure Flow YT6 3/4" Cast Steel NPT Y Strainer for water, oil, and gas with 1480 psi pressure rating, ideal for industrial applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6 3/4" Cast Steel NPT Y Strainer is a robust filtration solution suitable for water, oil, and gas applications. With a pressure rating of 1480 psi and a perforated stainless steel screen, this strainer ensures efficient removal of particulate matter. Constructed with ASTM A216 Grade WCB Cast Steel, it offers durability and reliability. The machined tapered seat guarantees a secure fit for the screen, and the blow-off feature allows easy maintenance. Compliant with ISO 9001:2008 standards, this Y strainer is ideal for industrial use.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1/4 in

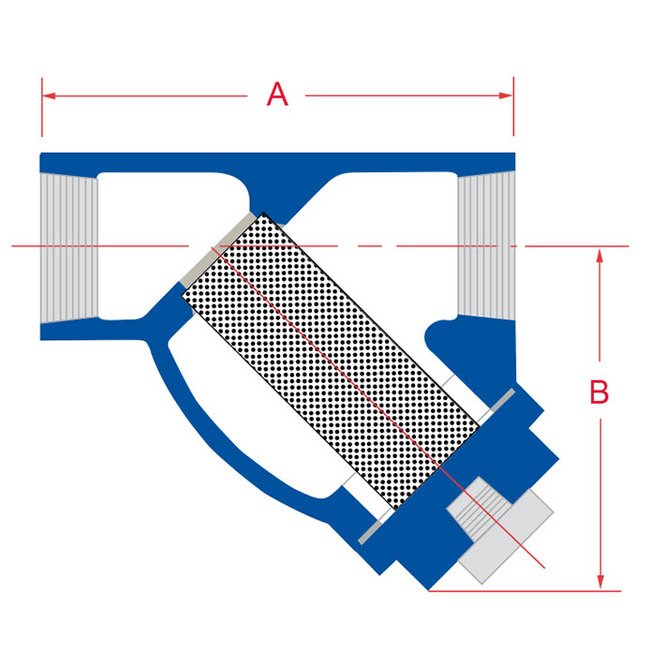

Dimensions Dimension A

3 5/8 in

Dimensions Dimension B

2 3/4 in

Dimensions Prefix Size

0075

Dimensions Shipping Weight

5 lb

Dimensions Size

3/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YT6 3/4" Cast Steel NPT Y Strainer
