Sure Flow YT6 3in Cast Steel NPT Y Strainer

Name: Sure Flow YT6 3in Cast Steel NPT Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-047592
Price: 239.99 USD
Availability: OutOfStock

SKU:YST-047592

Ensure optimum flow with Sure Flow's 3in Cast Steel NPT Y Strainer rated up to 1480 psi. ISO 9001:2008 compliant.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6 3 Inch Cast Steel NPT Y Strainer is a robust solution for applications requiring a high-pressure rating of up to 1480 psi for Water, Oil, or Gas. Constructed from ASTM A216 Grade WCB Cast Steel, this Y strainer features a machined, tapered seat ensuring a precise fit for the removable stainless steel screen. With a perforated standard screen of 3/64 in and a blow-off NPT size of 1 1/4 in, it offers efficiency and durability. Compliant with ISO 9001:2008 standards, this Y strainer guarantees reliability and performance in demanding industrial settings.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1 1/4 in

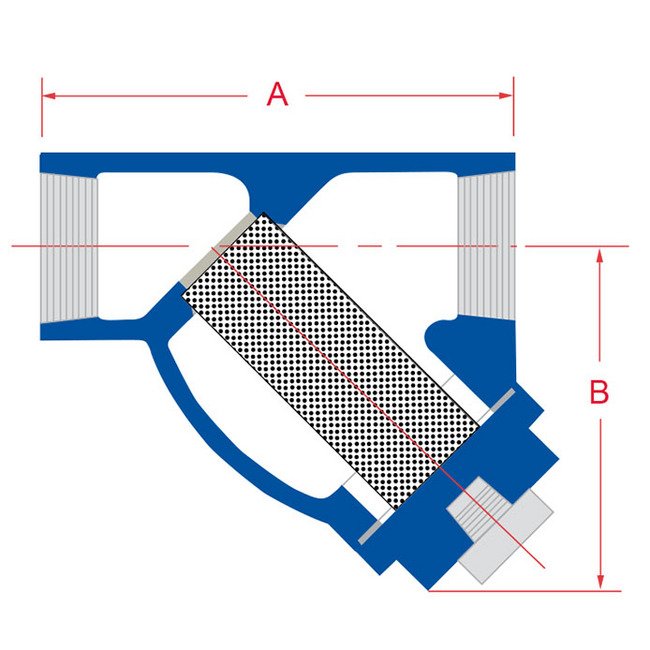

Dimensions Dimension A

9 1/2 in

Dimensions Dimension B

8 1/2 in

Dimensions Prefix Size

0300

Dimensions Shipping Weight

30 lb

Dimensions Size

3 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

3/64 in

Standard Screens Screen Opening

0.045 in

Sure Flow YT6 3in Cast Steel NPT Y Strainer
