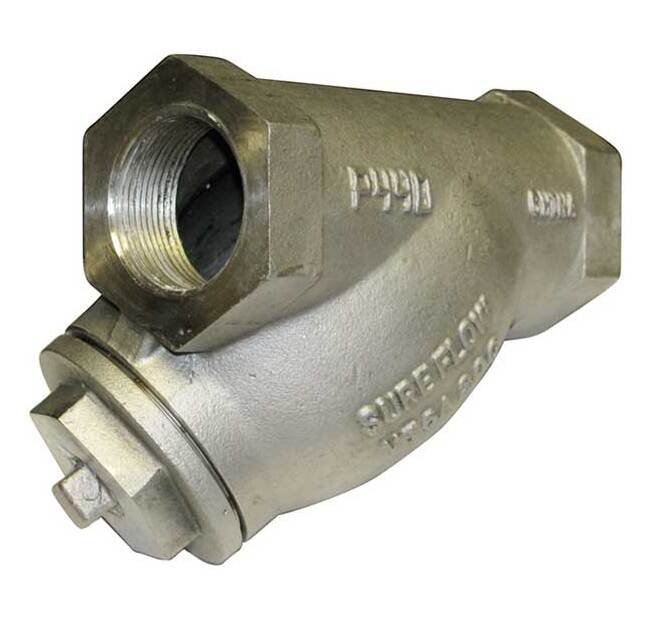

Sure Flow YT6A20 1/2in Alloy 20 Cast Y Strainer

Name: Sure Flow YT6A20 1/2in Alloy 20 Cast Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-220150
Price: 89.99 USD
Availability: OutOfStock

SKU:YST-220150

Sure Flow YT6A20 1/2in Alloy 20 Cast Y Strainer, up to 1500 psi, ASTM A351 Grade CN7M Cast Alloy 20, ISO 9001:2008 compliant.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6A20 Alloy 20 Cast Y Strainer is designed for high-pressure applications up to 1500 psi, suitable for Water, Oil, or Gas. Featuring a machined tapered seat and a removable stainless steel screen, this threaded strainer ensures optimal filtration efficiency. Built with ASTM A351 Grade CN7M Cast Alloy 20 material, it comes complete with a blow-off and plug for convenient maintenance. Compliant with ISO 9001:2008 standards, this Y strainer guarantees performance and durability in various industrial settings.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20

Construction Plug Material

American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20

Construction Screen Material

Alloy 20

Dimensions Blow Off National Pipe Thread Npt Size

1/4 in

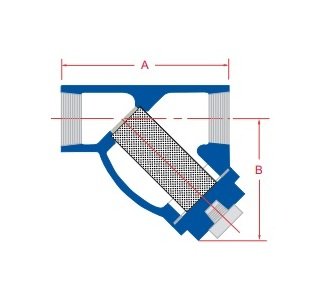

Dimensions Dimension A

3 1/4 in

Dimensions Dimension B

2 3/16 in

Dimensions Prefix Size

0050

Dimensions Shipping Weight

4 lb

Dimensions Size

1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1500 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YT6A20 1/2in Alloy 20 Cast Y Strainer
