Sure Flow YT6A20 1 Inch Alloy 20 Cast Y Strainer
Sure Flow YT6A20 1 Inch Alloy 20 Cast Y Strainer
SKU:YST-2827f4
High-pressure Alloy 20 Y Strainer with ASTM A351 Grade CN7M construction for Water, Oil, Gas applications. 1500 psi rating for WOG, equipped with blow-off and plug.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
Sure Flow YT6A20 1 Inch Alloy 20 Cast Y Strainer
$119.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6A20 1 Inch Alloy 20 Cast Y Strainer
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6A20 1 Inch Alloy 20 Cast Y Strainer is a high-pressure threaded strainer suitable for Water, Oil, or Gas applications. With a durable ASTM A351 Grade CN7M Cast Alloy 20 construction, this Y strainer has a 1500 psi rating for Water, Oil, Gas (WOG) temperature and a 600 psi rating for 486°F Steam temperature. It features a removable stainless steel screen with a 1/32 inch perforated standard screen opening. Designed for ease of maintenance, it includes a blow-off and plug, replaceable with a ball valve for convenient particulate blow-down.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Screen Material
Alloy 20
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

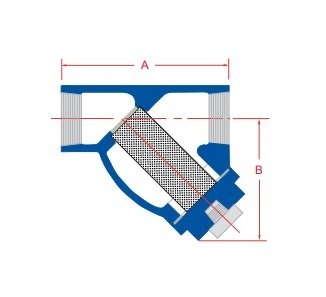

Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
3 3/16 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
6 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1500 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
