Sure Flow YT6A20 2 1/2 Inch Alloy 20 Cast Y Strainer
Sure Flow YT6A20 2 1/2 Inch Alloy 20 Cast Y Strainer
SKU:YST-7df0e9
Premium Sure Flow YT6A20 2 1/2 Inch Alloy 20 Cast Y Strainer - Durable, high-performance threaded strainer for water, oil, and gas applications. Pressure rated up to 1500 psi for WOG.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Sure Flow YT6A20 2 1/2 Inch Alloy 20 Cast Y Strainer
$359.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6A20 2 1/2 Inch Alloy 20 Cast Y Strainer
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

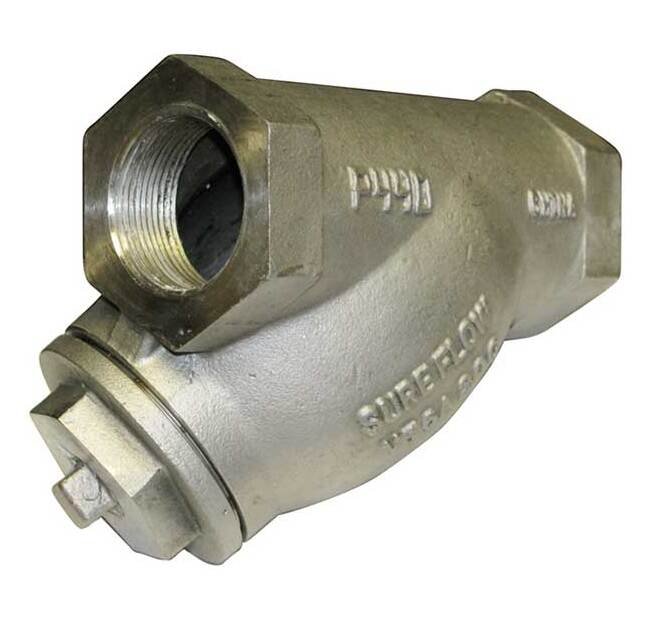

The Sure Flow YT6A20 2 1/2 Inch Alloy 20 Cast Y Strainer is a premium threaded strainer designed for optimal performance in Water, Oil, or Gas applications. Built with ASTM A351 Grade CN7M Cast Alloy 20 construction, this Y strainer offers durability and reliability. It features a machined, tapered seat for a secure fit of the stainless steel screen. With a pressure rating of up to 1500 psi for water, oil, and gas at 100°F, and 600 psi at 486°F for steam, this strainer ensures efficient filtration and protection. Complete with blow-off and plug, upgrade to a ball valve for easy on-line blow-down of particulate.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Screen Material
Alloy 20
Dimensions Blow Off National Pipe Thread Npt Size
1 1/4 in

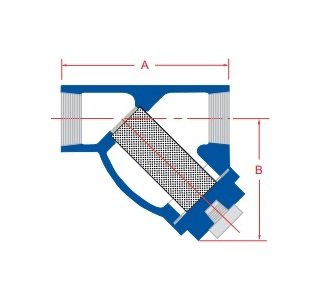

Dimensions Dimension A
8 3/8 in
Dimensions Dimension B
7 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
25 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1500 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
