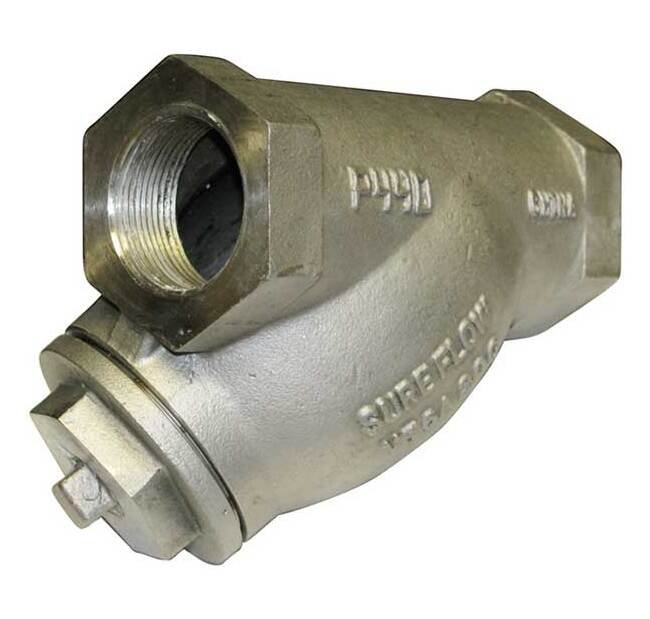

Sure Flow YT6A20 2 Inch Alloy 20 Threaded Cast Y Strainer
Sure Flow YT6A20 2 Inch Alloy 20 Threaded Cast Y Strainer
SKU:YST-8b0899
Sure Flow YT6A20 2 Inch Alloy 20 Cast Y Strainer - High pressure rating, durable construction, easy maintenance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow YT6A20 2 Inch Alloy 20 Threaded Cast Y Strainer
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6A20 2 Inch Alloy 20 Threaded Cast Y Strainer
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6A20 2 Inch Alloy 20 Threaded Cast Y Strainer is designed for durability and high performance in demanding environments. With a pressure rating of up to 1500 psi for water, oil, or gas, this strainer features a machined, tapered seat ensuring a perfect fit for the removable stainless steel screen. It comes complete with blow-off and plug, allowing for easy maintenance and on-line blow-down of particulate. Constructed with ASTM A351 Grade CN7M Cast Alloy 20 materials, this strainer meets stringent industry standards and is ideal for various applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Screen Material
Alloy 20
Dimensions Blow Off National Pipe Thread Npt Size
3/4 in

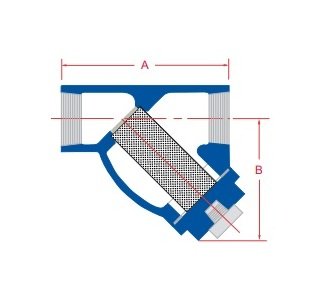

Dimensions Dimension A
7 5/8 in
Dimensions Dimension B
6 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
18 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1500 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
