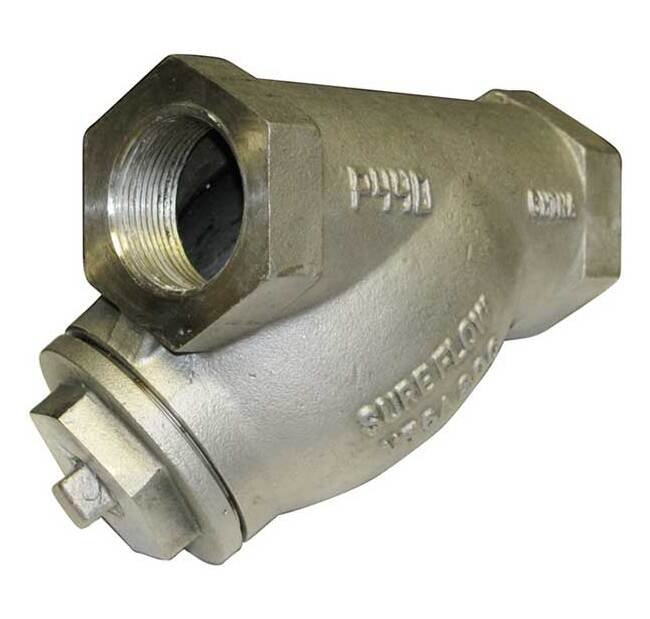

Sure Flow YT6A20 3/4 Inch Alloy 20 Cast Y Strainer

Name: Sure Flow YT6A20 3/4 Inch Alloy 20 Cast Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-9832e9
Price: 89.99 USD
Availability: OutOfStock

SKU:YST-9832e9

High-quality 3/4 Inch Alloy 20 Cast Y Strainer by Sure Flow, rated for up to 1500 psi. Removable stainless steel screen with precision filtration.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6A20 3/4 Inch Alloy 20 Cast Y Strainer is a high-quality threaded strainer designed for industrial use. This strainer is made from ASTM A351 Grade CN7M Cast Alloy 20, ensuring durability and reliability in high-pressure environments. With operating pressures of up to 1500 psi for water, oil, or gas, this strainer features a removable stainless steel screen with a perforated standard opening of 0.032 inches. It meets ISO 9001:2008 standards and is suitable for applications requiring precision filtration.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20

Construction Plug Material

American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20

Construction Screen Material

Alloy 20

Dimensions Blow Off National Pipe Thread Npt Size

1/4 in

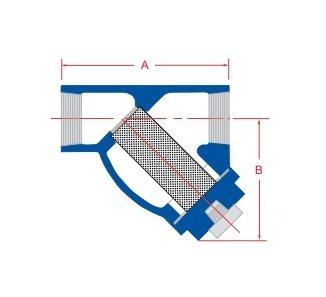

Dimensions Dimension A

3 5/8 in

Dimensions Dimension B

2 3/4 in

Dimensions Prefix Size

0075

Dimensions Shipping Weight

5 lb

Dimensions Size

3/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1500 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YT6A20 3/4 Inch Alloy 20 Cast Y Strainer
