Sure Flow YT6A20 Alloy 20 Cast Y Strainer - 1 1/4 Inch
Sure Flow YT6A20 Alloy 20 Cast Y Strainer - 1 1/4 Inch
SKU:YST-f8d8ff
Sure Flow YT6A20 Alloy 20 Cast Y Strainer - 1 1/4 Inch, rated up to 1500 psi, ASTM A351 Grade CN7M Cast Alloy 20, ISO 9001:2008 compliant.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Sure Flow YT6A20 Alloy 20 Cast Y Strainer - 1 1/4 Inch
$179.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6A20 Alloy 20 Cast Y Strainer - 1 1/4 Inch
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

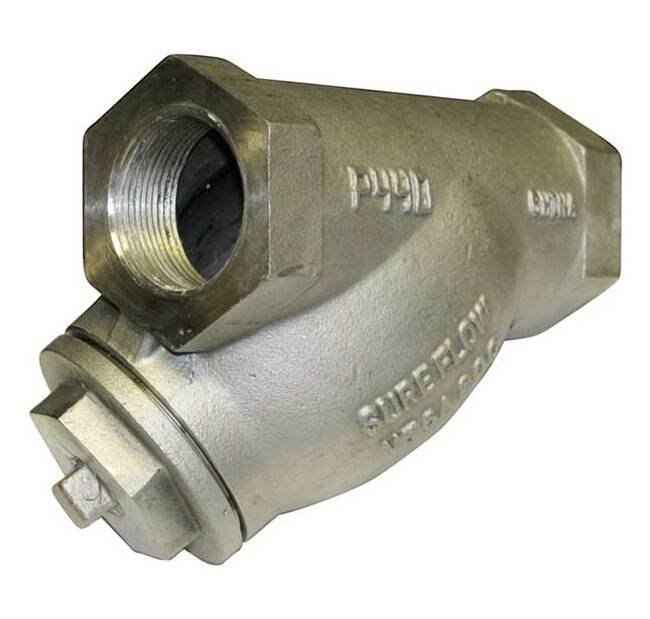

The Sure Flow YT6A20 1 1/4 Inch Alloy 20 Cast Y Strainer is a high-pressure strainer suitable for Water, Oil, or Gas systems, rated up to 1500 psi. Its sturdy construction featuring ASTM A351 Grade CN7M Cast Alloy 20 materials ensures durability and reliability. Precision-machined with a removable stainless steel screen and a blow-off function, this strainer offers easy maintenance and optimal performance. Compliant with ISO 9001:2008 standards, this strainer is a go-to choice for quality and efficiency in industrial applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Screen Material
Alloy 20
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

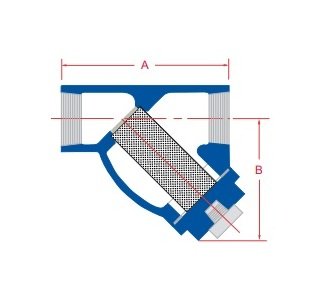

Dimensions Dimension A
5 1/4 in
Dimensions Dimension B
3 7/8 in
Dimensions Prefix Size
0125
Dimensions Shipping Weight
8 lb
Dimensions Size
1 1/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1500 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
