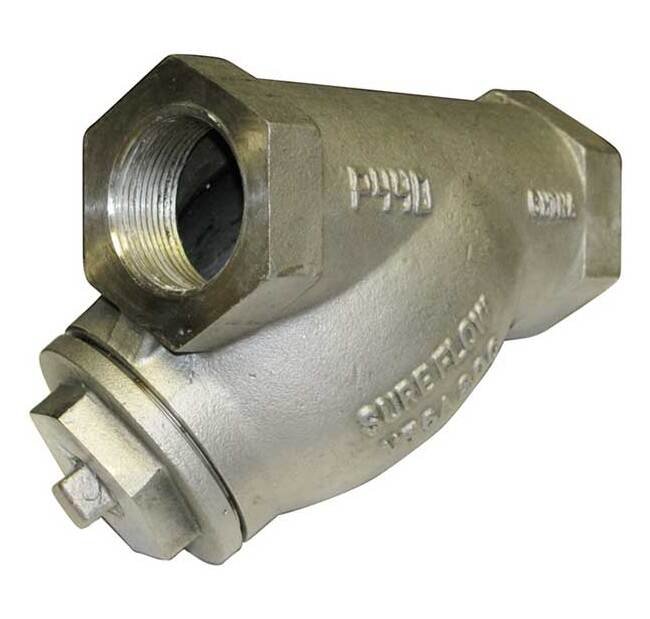

Sure Flow YT6A20 Alloy 20 Cast Y Strainer 3-Inch Threaded
Sure Flow YT6A20 Alloy 20 Cast Y Strainer 3-Inch Threaded
SKU:YST-d4ae07
Sure Flow YT6A20: 3" Alloy 20 Cast Y Strainer, 1500 psi, Perfect fit stainless steel screen, ISO 9001:2008
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow YT6A20 Alloy 20 Cast Y Strainer 3-Inch Threaded
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6A20 Alloy 20 Cast Y Strainer 3-Inch Threaded
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6A20 Alloy 20 Cast Y Strainer is a robust filtration solution suitable for demanding applications. Constructed with ASTM A351 Grade CN7M Cast Alloy 20, this Y strainer can withstand pressures up to 1500 psi for Water, Oil, or Gas. Its machined, tapered seat ensures a secure fit for the perforated standard screen, providing efficient particulate removal. Each unit includes a blow-off and plug, offering easy maintenance. This product adheres to ISO 9001:2008 standards, making it a reliable choice for institutional and government procurement.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Screen Material
Alloy 20
Dimensions Blow Off National Pipe Thread Npt Size
1 1/4 in

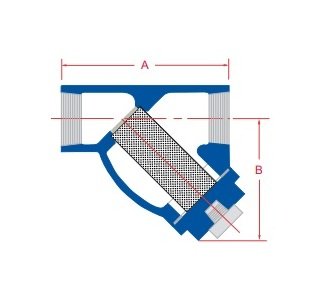

Dimensions Dimension A
9 1/2 in
Dimensions Dimension B
8 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
30 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1500 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
