Sure Flow YT6A20 Alloy 20 Threaded Cast Y Strainer, 1 1/2 inch
Sure Flow YT6A20 Alloy 20 Threaded Cast Y Strainer, 1 1/2 inch
SKU:YST-e96890
Sure Flow YT6A20 1.5" Alloy 20 Cast Y Strainer, up to 1500 psi rating, ASTM A351 Grade CN7M Cast Alloy 20 construction, blow-off feature for easy maintenance
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Sure Flow YT6A20 Alloy 20 Threaded Cast Y Strainer, 1 1/2 inch
$329.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6A20 Alloy 20 Threaded Cast Y Strainer, 1 1/2 inch
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

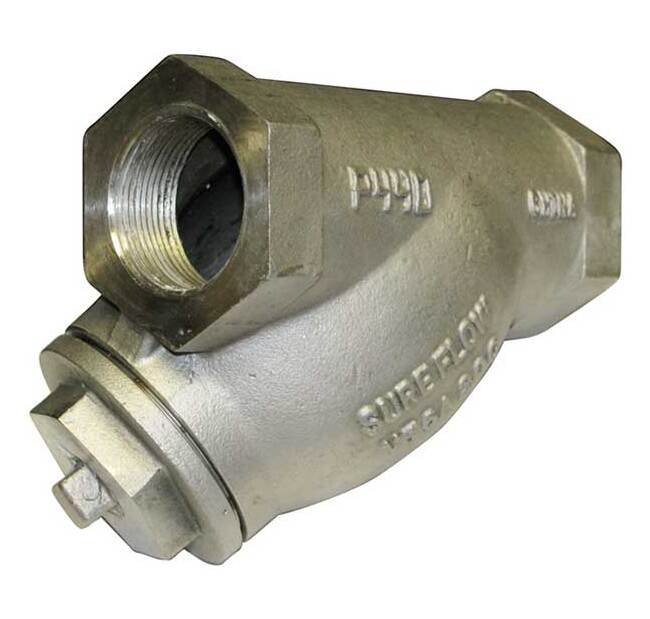

The Sure Flow YT6A20 1 1/2 Inch Alloy 20 Cast Y Strainer is built to withstand pressures up to 1500 psi for water, oil, or gas applications. Featuring a machined tapered seat and a removable stainless steel screen, this Y strainer ensures a perfect fit for efficient filtration. Equipped with a blow-off and plug, it can be easily upgraded to include a ball valve for convenient on-line blow-down of particulate matter. Constructed with ASTM A351 Grade CN7M Cast Alloy 20 materials, this strainer meets stringent quality standards for lasting performance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CN7M Cast Alloy 20
Construction Screen Material
Alloy 20
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

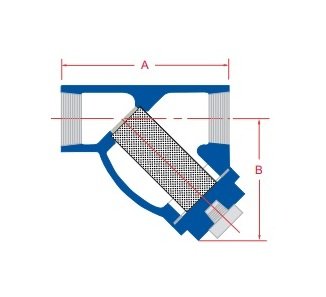

Dimensions Dimension A
6 1/4 in
Dimensions Dimension B
4 3/4 in
Dimensions Prefix Size
0150
Dimensions Shipping Weight
10 lb
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1500 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
