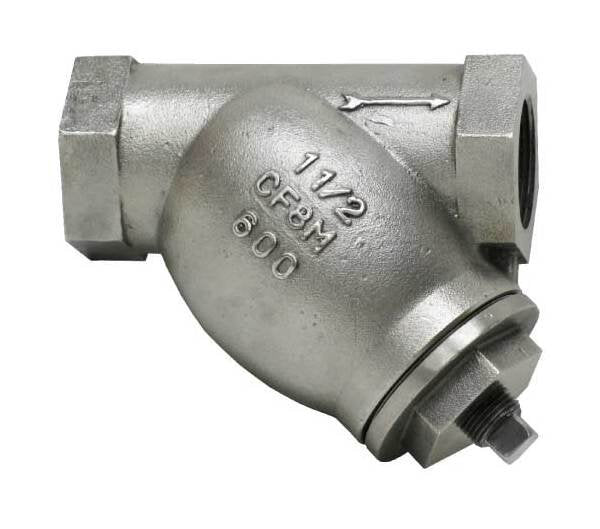

Sure Flow YT6SS 1 1/4 Inch Cast 316 Stainless Steel Y Strainer
Sure Flow YT6SS 1 1/4 Inch Cast 316 Stainless Steel Y Strainer
SKU:YST-bbc9ee
The Sure Flow YT6SS 1 1/4" Cast 316 Stainless Steel Y Strainer boasts high durability and superior filtration capabilities for water, oil, and gas applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Sure Flow YT6SS 1 1/4 Inch Cast 316 Stainless Steel Y Strainer
$199.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6SS 1 1/4 Inch Cast 316 Stainless Steel Y Strainer
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6SS Y Strainer offers reliable filtration with its Cast Stainless Steel construction meeting ASTM A351 Grade CF8M standards. Rated for up to 1440 psi at 100°F for Water, Oil, Gas applications, it features a perforated standard screen with a precision design for efficient particulate removal. This strainer includes a blow-off and plug, allowing for convenient maintenance and can be upgraded with a ball valve for seamless on-line blow-down operations.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

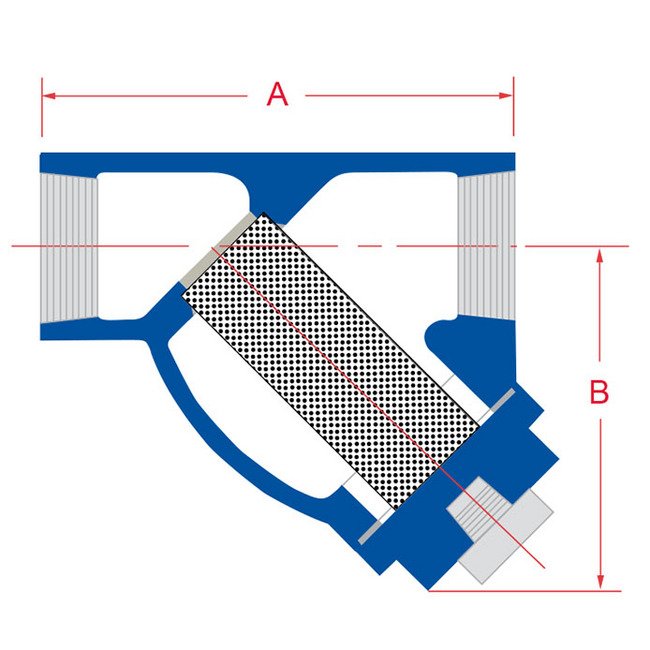

Dimensions Dimension A
5 1/4 in
Dimensions Dimension B
3 7/8 in
Dimensions Prefix Size
0125
Dimensions Shipping Weight
8 lb
Dimensions Size
1 1/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
