Sure Flow YT6SS 1/2'' 316 Stainless Steel NPT Socket Weld Y Strainer
Sure Flow YT6SS 1/2'' 316 Stainless Steel NPT Socket Weld Y Strainer
SKU:YST-4e637c
Reliable Sure Flow YT6SS 1/2'' 316 Stainless Steel NPT Socket Weld Y Strainer - Ideal for water, oil, gas, and steam services.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Sure Flow YT6SS 1/2'' 316 Stainless Steel NPT Socket Weld Y Strainer
$89.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6SS 1/2'' 316 Stainless Steel NPT Socket Weld Y Strainer
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6SS Y Strainer offers exceptional durability and performance for water, oil, or gas applications, meeting stringent operational pressures up to 1440 psi. Crafted from ASTM A351 Grade CF8M Cast Stainless Steel, this Y strainer features a machined tapered seat for a precise fit with its stainless steel screen. The inclusion of a blow-off and plug, replaceable with a ball valve, allows for convenient on-line blow-down of particulate matter. With compliance to ISO 9001:2008 standards, the Sure Flow YT6SS ensures reliability and quality.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/4 in

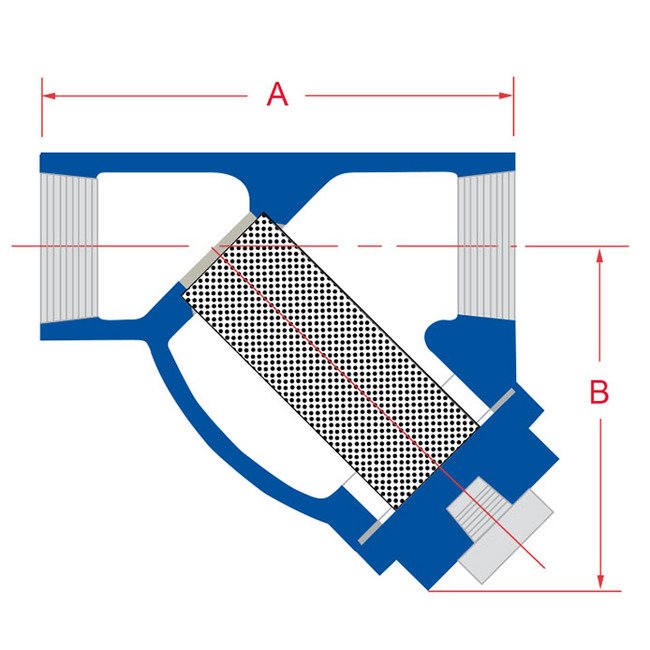

Dimensions Dimension A
3 1/4 in
Dimensions Dimension B
2 3/16 in
Dimensions Prefix Size
0050
Dimensions Shipping Weight
4 lb
Dimensions Size
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
