Sure Flow YT6SS 1 Inch 316 Stainless Steel NPT Y Strainer
Sure Flow YT6SS 1 Inch 316 Stainless Steel NPT Y Strainer
SKU:YST-7d7b4f
Reliable 1Inch 316 Stainless Steel NPT Y Strainer for Water, Oil & Gas Filtration. Max Pressure: 1440 psi. Durable & Efficient Design.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Sure Flow YT6SS 1 Inch 316 Stainless Steel NPT Y Strainer
$199.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6SS 1 Inch 316 Stainless Steel NPT Y Strainer
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6SS 1 Inch Y Strainer is a robust solution made of ASTM A351 Grade CF8M Cast Stainless Steel, suitable for pressures up to 1440 psi. Its machined seat guarantees a secure fit for the stainless steel screen, ensuring efficient filtration for water, oil, or gas applications. Equipped with a blow-off and plug that can be upgraded with a ball valve for convenient particulate removal.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

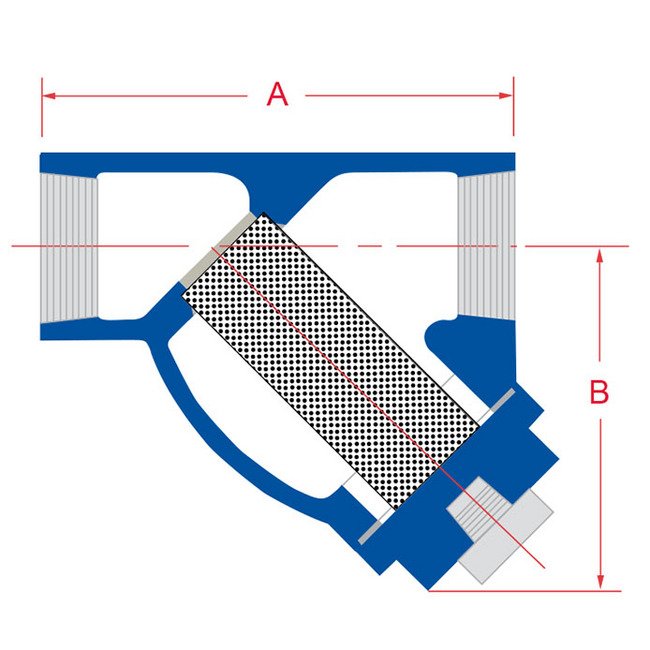

Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
3 3/16 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
6 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
