Sure Flow YT6SS 2 1/2" Stainless Steel Y Strainer
Sure Flow YT6SS 2 1/2" Stainless Steel Y Strainer
SKU:YST-bf39a1
Sure Flow YT6SS 2 1/2" Stainless Steel Y Strainer - Ideal for water, oil, and gas applications. ISO 9001:2008 certified for top-notch quality.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow YT6SS 2 1/2" Stainless Steel Y Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6SS 2 1/2" Stainless Steel Y Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

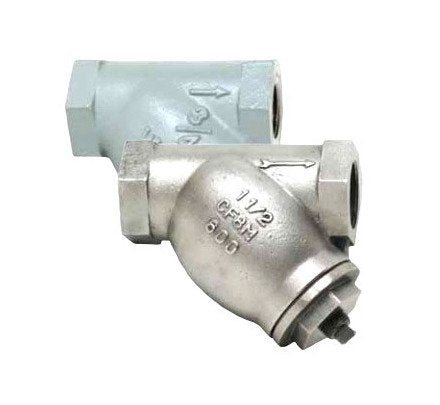

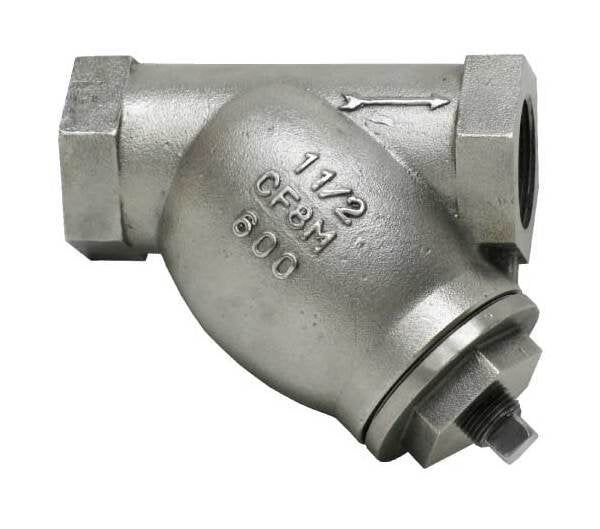

The Sure Flow YT6SS Y Strainer offers exceptional durability and performance for water, oil, and gas applications. Constructed with ASTM A351 Grade CF8M Cast Stainless Steel, it can withstand pressures up to 1440 psi at 100°F. The removable stainless steel screen with a 3/64" perforated standard screen ensures efficient filtration. Meeting ISO 9001:2008 standards, this strainer guarantees quality and reliability for industrial use.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/4 in

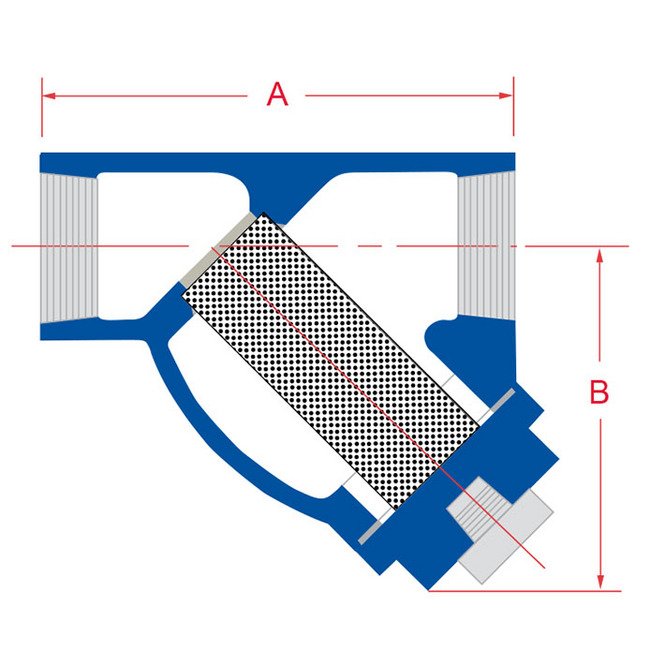

Dimensions Dimension A
8 3/8 in
Dimensions Dimension B
7 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
25 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
