Sure Flow YT6SS Stainless Steel 3/4" NPT Y Strainer
Sure Flow YT6SS Stainless Steel 3/4" NPT Y Strainer
SKU:YST-0906e6
Reliable Sure Flow YT6SS 3/4" NPT Y Strainer for efficient water, oil, and gas filtration. ASTM A351 Grade CF8M Cast Stainless Steel construction. Meets ISO 9001:2008 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure Flow YT6SS Stainless Steel 3/4" NPT Y Strainer
$129.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6SS Stainless Steel 3/4" NPT Y Strainer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6SS 3/4" Y Strainer is precision-engineered from ASTM A351 Grade CF8M Cast Stainless Steel, providing exceptional durability for water, oil, and gas filtration applications. With operating pressures up to 1440 psi at 100°F and a perforated standard screen with 0.032" openings, this Y strainer ensures efficient particle removal. Its versatile threaded connection type and blow-off NPT size of 1/4" make maintenance hassle-free, while meeting ISO 9001:2008 standards for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/4 in

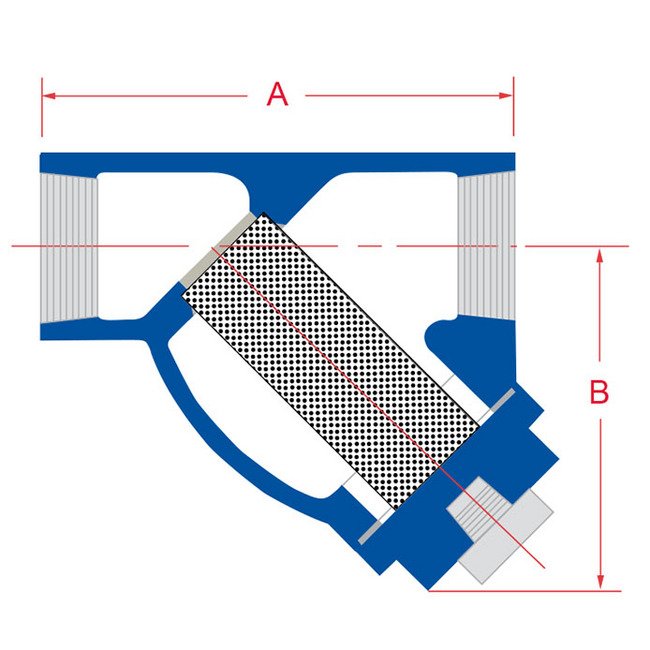

Dimensions Dimension A
3 5/8 in
Dimensions Dimension B
2 3/4 in
Dimensions Prefix Size
0075
Dimensions Shipping Weight
5 lb
Dimensions Size
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
