Sure Flow YTC1500CM 1 1/2 Inch Cast Chrome-Moly NPT/SW Y Strainer
Sure Flow YTC1500CM 1 1/2 Inch Cast Chrome-Moly NPT/SW Y Strainer
SKU:YST-a62267
Sure Flow YTC1500CM 1 1/2" Cast Chrome-Moly NPT/SW Y Strainer - Class 1500 ASME, High-Pressure Filtration, ISO 9001:2008 (Intertek)
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow YTC1500CM 1 1/2 Inch Cast Chrome-Moly NPT/SW Y Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow YTC1500CM 1 1/2 Inch Cast Chrome-Moly NPT/SW Y Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YTC1500CM 1 1/2 Inch Cast Chrome-Moly NPT/SW Y Strainer is a robust solution for industrial filtration needs. Constructed with ASTM A217 Grade WC6 Cast Chrome-Moly, it offers exceptional durability and performance. Designed for Class 1500 ASME standards, featuring a removable stainless steel screen with 1/32" perforations, this Y strainer ensures reliable filtration in vertical or horizontal pipelines. With operating pressures up to 3750 psi for water, oil, and gas, and 1500 psi for steam, this strainer guarantees efficient and high-pressure filtration. Meets ISO 9001:2008 (Intertek) standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A217 Grade WC6 Cast Chrome-Moly
Construction Cover Material
American Society for Testing and Materials (ASTM) A217 Grade WC6 Cast Chrome-Moly
Construction Screen Material
Stainless Steel

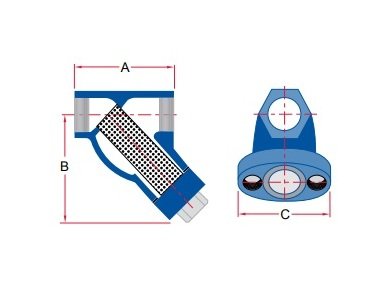

Dimensions Dimension A
6 3/8 in
Dimensions Dimension B
6 5/8 in
Dimensions Dimension C
7 9/16 in
Dimensions Prefix Size
0150
Dimensions Shipping Weight
38 lb
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3750 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
