Sure Flow YTC1500CM 2 1/2in Cast Chrome-Moly NPT/SW Y Strainer

Name: Sure Flow YTC1500CM 2 1/2in Cast Chrome-Moly NPT/SW Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-f3d6f0
Price: 349.99 USD
Availability: OutOfStock

SKU:YST-f3d6f0

Premium Sure Flow YTC1500CM 2.5in Cast Chrome-Moly Y Strainer with ASTM A217 Grade WC6 construction and 3750 psi pressure rating.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YTC1500CM 2 1/2-inch Cast Chrome-Moly Y Strainer offers exceptional durability and performance. Constructed with ASTM A217 Grade WC6 Cast Chrome-Moly, it features a bolted cover for easy maintenance, a removable stainless steel screen, and can be installed in both vertical and horizontal pipelines. With a pressure rating up to 3750 psi for water, oil, and gas applications, this Y Strainer meets ISO 9001:2008 standards ensuring quality and reliability.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A217 Grade WC6 Cast Chrome-Moly

Construction Cover Material

American Society for Testing and Materials (ASTM) A217 Grade WC6 Cast Chrome-Moly

Construction Screen Material

Stainless Steel

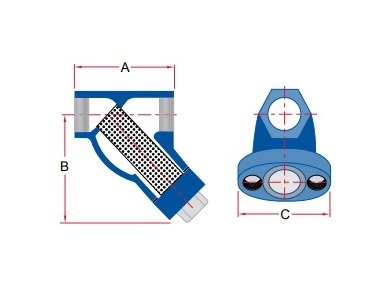

Dimensions Dimension A

9 in

Dimensions Dimension B

8 3/4 in

Dimensions Dimension C

9 1/4 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

95 lb

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

3750 psi

Operating Pressures And Temperatures Pressure At 596 Degree Fahr

1500 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

3/64 in

Standard Screens Screen Opening

0.045 in

Sure Flow YTC1500CM 2 1/2in Cast Chrome-Moly NPT/SW Y Strainer
