Sure Flow YTC1500CM 3 Inch Cast Chrome-Moly NPT/SW Y Strainer
Sure Flow YTC1500CM 3 Inch Cast Chrome-Moly NPT/SW Y Strainer
SKU:YST-9633da
High-performance Sure Flow Y Strainer with ASTM A217 Grade WC6 Cast Chrome-Moly construction, bolted cover for easy maintenance, and superior pressure ratings. Meets ISO 9001:2008 standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow YTC1500CM 3 Inch Cast Chrome-Moly NPT/SW Y Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow YTC1500CM 3 Inch Cast Chrome-Moly NPT/SW Y Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YTC1500CM 3 Inch Cast Chrome-Moly Y Strainer is a robust filtering solution suitable for a wide range of applications. Constructed from ASTM A217 Grade WC6 Cast Chrome-Moly, this Class 1500 ASME Strainer features a bolted cover for effortless screen removal, a machined tapered seat for a precise fit with the stainless steel screen, and a blow-off connection suitable for NPT or Socket Weld installations. With high-pressure ratings up to 1500 psi at 596°F for steam and 3750 psi at 100°F for water, oil, and gas, this strainer delivers exceptional performance and durability. It meets ISO 9001:2008 standards, ensuring quality and reliability for various industrial requirements.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A217 Grade WC6 Cast Chrome-Moly
Construction Cover Material
American Society for Testing and Materials (ASTM) A217 Grade WC6 Cast Chrome-Moly
Construction Screen Material
Stainless Steel

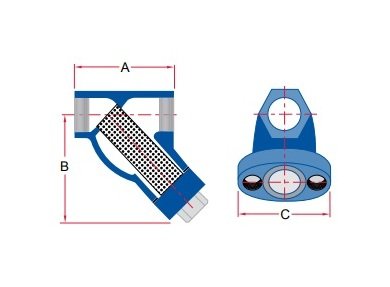

Dimensions Dimension A
9 3/4 in
Dimensions Dimension B
10 1/16 in
Dimensions Dimension C
9 9/16 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
114 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3750 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
