Sure Flow YTC1500SS 1 1/2in Stainless Steel Y Strainer

Name: Sure Flow YTC1500SS 1 1/2in Stainless Steel Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-e94a03
Price: 399.99 USD
Availability: OutOfStock

SKU:YST-e94a03

Sure Flow YTC1500SS 1 1/2in Stainless Steel Y Strainer - ASME Class 1500, ASTM A351 Grade CF8M, Perforated Screen, ISO 9001:2008 Compliant

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YTC1500SS Y Strainer is a premium solution for fluid filtration in pipelines. Made from ASTM A351 Grade CF8M Cast Stainless Steel, this strainer offers durability and corrosion resistance. It features a bolted cover for easy screen removal, a machined tapered seat for a secure fit, and a blow-off connection for maintenance. With a perforated stainless steel screen and ASME Class 1500 rating, it ensures efficient operation at high pressures and temperatures. Compliant with ISO 9001:2008 standards, this Y Strainer is ideal for industrial applications requiring reliable filtration.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Screen Material

Stainless Steel

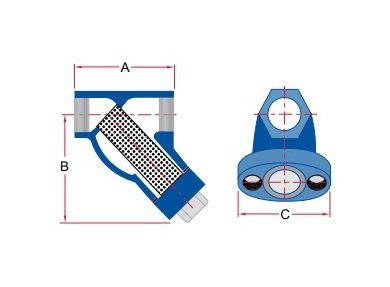

Dimensions Dimension A

6 3/8 in

Dimensions Dimension B

6 5/8 in

Dimensions Dimension C

7 9/16 in

Dimensions Prefix Size

0150

Dimensions Shipping Weight

38 lb

Dimensions Size

1 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

3600 psi

Operating Pressures And Temperatures Pressure At 596 Degree Fahr

1500 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YTC1500SS 1 1/2in Stainless Steel Y Strainer
