Sure Flow YTC1500SS 1/2 Inch Cast Stainless Steel Y Strainer
Sure Flow YTC1500SS 1/2 Inch Cast Stainless Steel Y Strainer
SKU:YST-0ca94e
Sure Flow Y Strainer: Stainless Steel, Bolted Cover, Perforated Screen, ISO 9001:2008 Certified
Regular price
$209.99
Regular price
Sale price
$209.99
Unit price
per
Initiate Order
Sure Flow YTC1500SS 1/2 Inch Cast Stainless Steel Y Strainer
$209.99
Quantity: 1
Claim Your Seller Account
Sure Flow YTC1500SS 1/2 Inch Cast Stainless Steel Y Strainer
$209.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

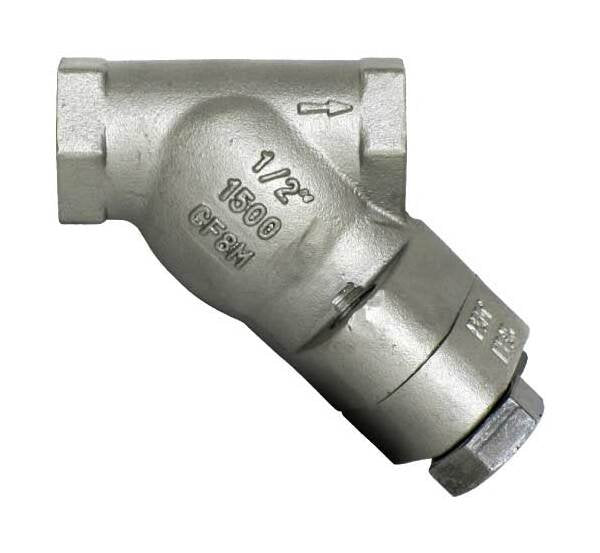

The Sure Flow YTC1500SS Y Strainer is a versatile solution designed to efficiently filter particulates in pipelines. Crafted from ASTM A351 Grade CF8M cast stainless steel, this Y Strainer features a bolted cover for easy maintenance, a machined tapered seat for precise screen fit, and a blow-off connection for convenient drainage. With a perforated standard screen and international certifications, it meets stringent ISO 9001:2008 standards, making it ideal for both consumer and institutional use.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel

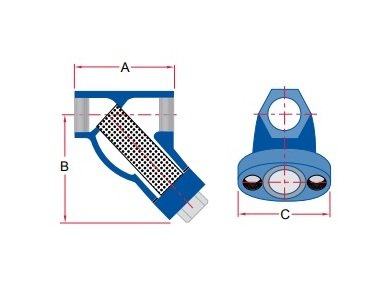

Dimensions Dimension A
3 5/8 in
Dimensions Dimension B
3 7/8 in
Dimensions Dimension C
4 in
Dimensions Prefix Size
0050
Dimensions Shipping Weight
16 lb
Dimensions Size
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3600 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
