Sure Flow YTC1500SS 1 Inch Stainless Steel Y Strainer

Name: Sure Flow YTC1500SS 1 Inch Stainless Steel Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-149db5
Price: 189.99 USD
Availability: OutOfStock

SKU:YST-149db5

Enhance pipeline integrity with the Sure Flow YTC1500SS Y Strainer. Premium stainless steel construction, easy maintenance, and high pressure handling. ISO 9001:2008 compliant.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YTC1500SS 1 Inch Y Strainer offers exceptional durability and performance. Crafted from ASTM A351 Grade CF8M Cast Stainless Steel, this Y strainer features a bolted cover for easy screen removal, a machined tapered seat, and a removable stainless steel screen. Ideal for horizontal or vertical installations, with NPT or Socket Weld connections for added flexibility. Operating at 1500 psi steam and 3600 psi water, oil, gas temperatures, this strainer meets ISO 9001:2008 standards.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Screen Material

Stainless Steel

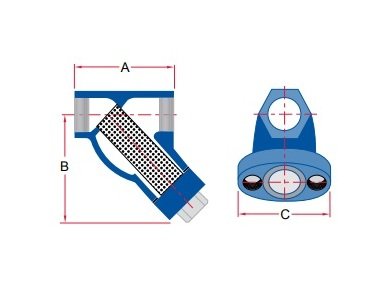

Dimensions Dimension A

4 7/8 in

Dimensions Dimension B

5 5/16 in

Dimensions Dimension C

5 5/8 in

Dimensions Prefix Size

0100

Dimensions Shipping Weight

23 lb

Dimensions Size

1 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

3600 psi

Operating Pressures And Temperatures Pressure At 596 Degree Fahr

1500 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YTC1500SS 1 Inch Stainless Steel Y Strainer
