Sure Flow YTC1500SS 2 1/2in Cast Stainless Steel NPT/SW Y Strainer
Sure Flow YTC1500SS 2 1/2in Cast Stainless Steel NPT/SW Y Strainer
SKU:YST-7ff692
Reliable Sure Flow 2 1/2in Cast Stainless Steel Y Strainer for high-pressure filtration needs. Meets ISO 9001:2008 standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow YTC1500SS 2 1/2in Cast Stainless Steel NPT/SW Y Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow YTC1500SS 2 1/2in Cast Stainless Steel NPT/SW Y Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YTC1500SS 2 1/2 Inch Cast Stainless Steel Y Strainer is built to Class 1500 ASME standards, offering exceptional durability and performance. Featuring a bolted cover for easy screen removal and a machined, tapered seat for a precise fit with the stainless steel screen, this Y strainer ensures efficient filtration. With a blow-off connection for convenient maintenance and installation versatility in both vertical and horizontal pipelines, this strainer excels in handling high pressures and temperatures. Constructed with ASTM A351 Grade CF8M stainless steel, it meets ISO 9001:2008 quality standards, making it a reliable choice for various applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel

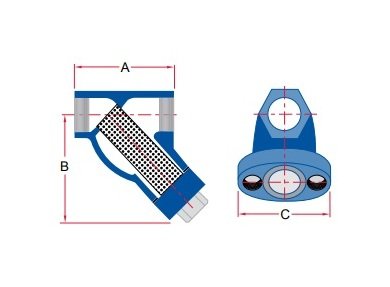

Dimensions Dimension A
9 in
Dimensions Dimension B
8 3/4 in
Dimensions Dimension C
9 1/4 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
95 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3600 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
