Sure Flow YTC1500SS 3/4in Stainless Steel Cast Y Strainer
Sure Flow YTC1500SS 3/4in Stainless Steel Cast Y Strainer
SKU:YST-28004c
High-performance 3/4in Stainless Steel Y Strainer for precise filtration in demanding conditions.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow YTC1500SS 3/4in Stainless Steel Cast Y Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow YTC1500SS 3/4in Stainless Steel Cast Y Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YTC1500SS 3/4 Inch Stainless Steel Cast Y Strainer is a premium solution for demanding filtration needs. This Class 1500 ASME Strainer is constructed with high-grade ASTM A351 Grade CF8M Cast Stainless Steel and features a bolted cover for effortless screen removal. It is designed for horizontal or vertical installation with NPT or Socket Weld connections, suitable for applications up to 1500 psi at 596°F steam temperature. With a perforated standard screen and superior materials, this Y Strainer ensures reliable filtration performance in critical environments.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel

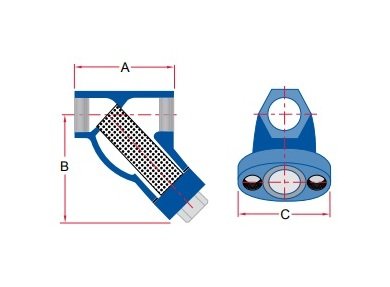

Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
4 9/16 in
Dimensions Dimension C
4 7/8 in
Dimensions Prefix Size
0075
Dimensions Shipping Weight
19 lb
Dimensions Size
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3600 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
