Sure Flow YTC1500SS 3-Inch Cast Stainless Steel NPT/SW Y Strainer
Sure Flow YTC1500SS 3-Inch Cast Stainless Steel NPT/SW Y Strainer
SKU:YST-fa2169
Sure Flow YTC1500SS 3" Cast Stainless Steel Y Strainer, Class 1500 ASME, ASTM A351 Grade CF8M, Pressure up to 1500 psi for steam, 3600 psi for WOG, ISO 9001:2008
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow YTC1500SS 3-Inch Cast Stainless Steel NPT/SW Y Strainer
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow YTC1500SS 3-Inch Cast Stainless Steel NPT/SW Y Strainer
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

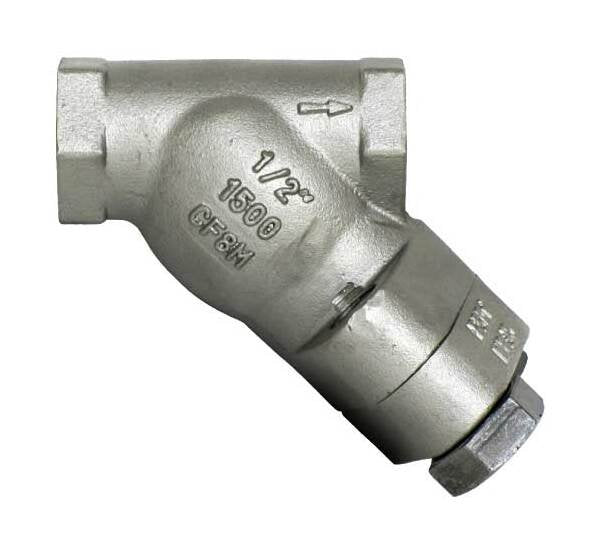

The Sure Flow YTC1500SS Cast Y Strainer is a reliable solution designed for Class 1500 ASME applications. Crafted from ASTM A351 Grade CF8M Cast Stainless Steel, this Y Strainer features a bolted cover for easy screen removal and a tapered seat ensuring a perfect fit. Operating at pressures up to 1500 psi for steam and 3600 psi for water, oil, and gas, it meets ISO 9001:2008 standards. Suitable for vertical or horizontal installation with NPT or Socket Weld connections, this Y Strainer offers exceptional durability and performance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel

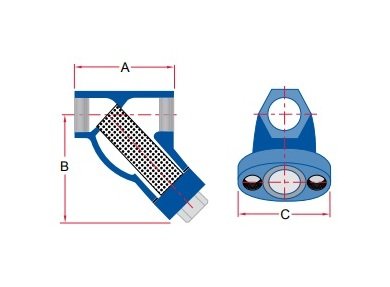

Dimensions Dimension A
9 3/4 in
Dimensions Dimension B
10 1/16 in
Dimensions Dimension C
9 9/16 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
114 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3600 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
