SureFlow 2" Barred Tee with Buttweld End Connections
SureFlow 2" Barred Tee with Buttweld End Connections
SKU:BAR-20b7e6
Ensure pipeline integrity with the SureFlow 2" Barred Tee for optimal pig passage and performance. ASME Class 150 compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SureFlow 2" Barred Tee with Buttweld End Connections
$129.99
Quantity: 1
Claim Your Seller Account
SureFlow 2" Barred Tee with Buttweld End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow 2" Barred Tee is engineered to meet the highest industry standards and project specifications, offering superior construction in Alloy, Carbon Steel or Stainless Steel. With a pressure rating of 1480 psi at 100°F for Water, Oil, Gas (WOG) applications, and adherence to ASME Class 150 standards, this Tee ensures safe pig passage and optimal pipeline performance. Custom-fitted bar sections prevent damage to Pigs, while the Buttweld End Connections provide durability. Optional Flanged Connections and extended pup-pieces cater to diverse needs in pipeline systems.
Product Specifications
Additional Information Additional Information

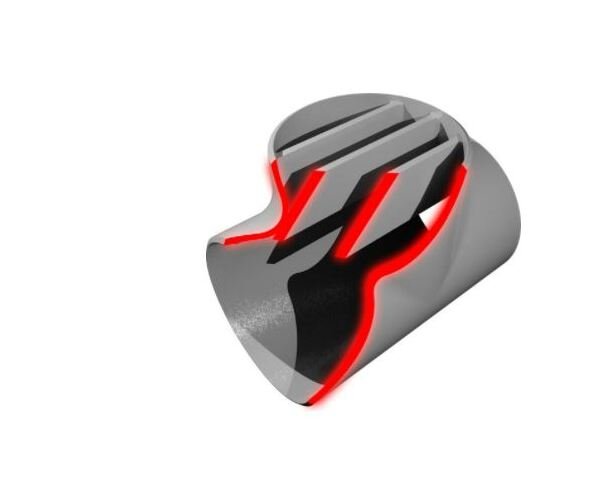

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.
Construction Construction

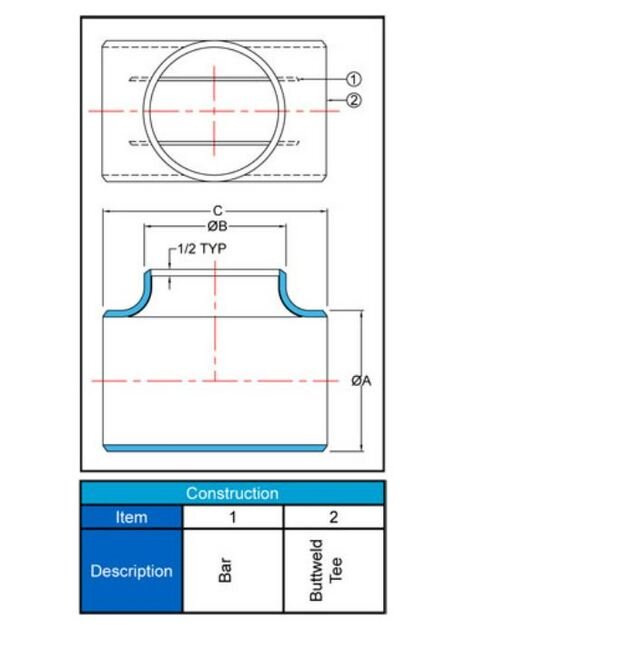

Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
5 in
Dimensions Size
2 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0200
