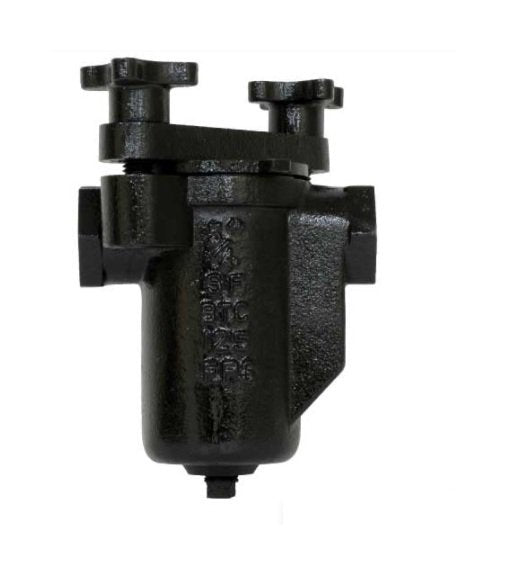

SureFlow BTC125 1 1/2in Cast Iron NPT Simplex Basket Strainer
SureFlow BTC125 1 1/2in Cast Iron NPT Simplex Basket Strainer
SKU:BAS-31ac7d
Innovative SureFlow 1 1/2'' Cast Iron NPT Basket Strainer with Quick Open Swivel Clamp Cover for easy maintenance. Meets ISO 9001:2008 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SureFlow BTC125 1 1/2in Cast Iron NPT Simplex Basket Strainer
$299.99
Quantity: 1
Claim Your Seller Account
SureFlow BTC125 1 1/2in Cast Iron NPT Simplex Basket Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow BTC125 1 1/2 Inch Cast Iron NPT Simplex Basket Strainer is designed for applications with high solid particulate volumes, ensuring easy removal and disposal of captured debris. Featuring a Quick Open Swivel Clamp Cover, this strainer allows for tool-free, fast screen removal. Constructed with ASTM A126 Class B Cast Iron body and Stainless Steel screen, it meets rigorous industry standards like ISO 9001:2008 (Intertek). Operates at 200 psi and is ideal for applications requiring frequent clean-outs.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

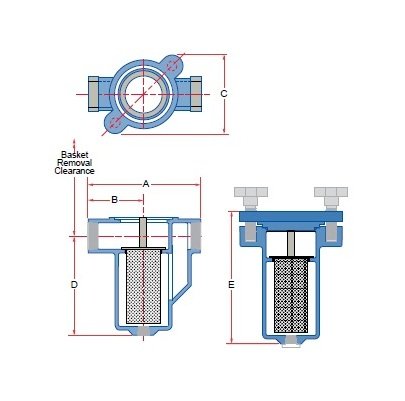

Dimensions Basket Removal Clearance
9 in
Dimensions Dimension A
8 3/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
5 7/8 in
Dimensions Dimension D
7 3/8 in
Dimensions Dimension E
9 3/4 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0150
Dimensions Shipping Weight
30 lb
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
