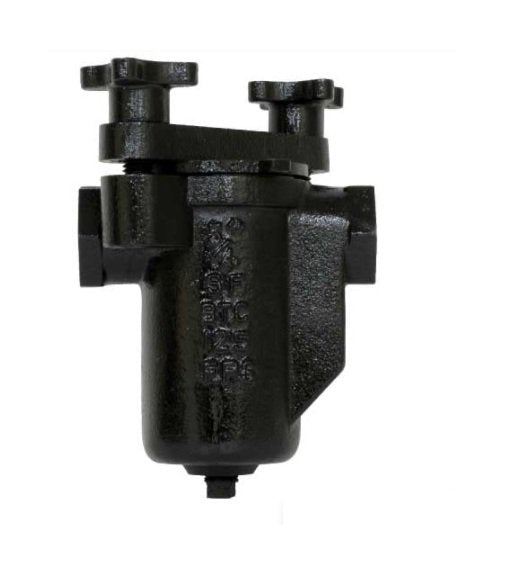

SureFlow BTC125 1 1/4in Cast Iron NPT Simplex Basket Strainer
SureFlow BTC125 1 1/4in Cast Iron NPT Simplex Basket Strainer
SKU:BAS-60af2a
Efficiently remove solid particulates with ease using this ASTM A126 Class B Cast Iron NPT Simplex Basket Strainer, compliant with ISO 9001:2008 standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Ensure efficient particulate removal with the SureFlow BTC125 1 1/4in Cast Iron NPT Simplex Basket Strainer. Designed for frequent clean-outs, it features a top-removable basket screen with a swivel clamp cover for effortless maintenance. Made of ASTM A126 Class B Cast Iron, it meets ISO 9001:2008 standards, ensuring reliability and durability. With a BUNA-N O-Ring seal and stainless steel screen, it offers robust performance at pressures up to 200 psi and temperatures of 150°F. Ideal for applications expecting substantial solid particulates, this strainer delivers fast, tool-free screen removal for hassle-free servicing.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

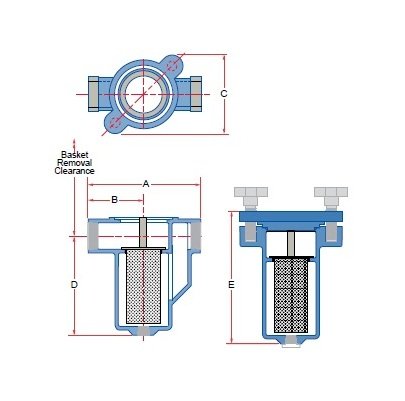

Dimensions Basket Removal Clearance
9 in
Dimensions Dimension A
8 3/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
5 7/8 in
Dimensions Dimension D
7 3/8 in
Dimensions Dimension E
9 3/4 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0125
Dimensions Shipping Weight
30 lb
Dimensions Size
1 1/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
