SureFlow BTC150SS Simplex Basket Strainer

Name: SureFlow BTC150SS Simplex Basket Strainer
Brand: Sure Flow Equipment, Inc.
SKU: BAS-8e34d6
Price: 299.99 USD
Availability: OutOfStock

SKU:BAS-8e34d6

Efficiently capture and remove solid particulate with SureFlow BTC150SS Basket Strainer. Swivel Clamp Cover for quick maintenance. ISO 9001:2008 compliant.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SureFlow BTC150SS 1 1/4 Inch Cast 316 Stainless Steel Basket Strainer is designed for applications with substantial solid particulate. Featuring a top removal screen basket with a lifting handle for easy disposal of captured debris. The Swivel Clamp Cover allows tool-free fast screen removal, while O-ring seals eliminate the need for gasket changes with each service. Operating at 275 psi WOG temperature, this strainer meets ISO 9001:2008 standards.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)

Construction Screen Material

Stainless Steel

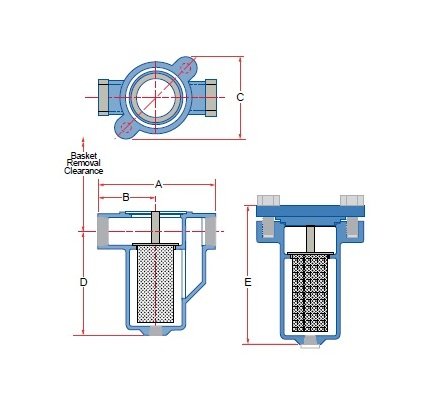

Dimensions Basket Removal Clearance

9 in

Dimensions Dimension A

8 3/8 in

Dimensions Dimension B

4 1/8 in

Dimensions Dimension C

5 7/8 in

Dimensions Dimension D

7 3/8 in

Dimensions Dimension E

9 3/4 in

Dimensions Drain Size

3/4 in

Dimensions Prefix Size

0125

Dimensions Shipping Weight

30 lb

Dimensions Size

1 1/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

275 psi

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

SureFlow BTC150SS Simplex Basket Strainer
