SureFlow BWEB150SS Stainless Steel Fabricated Basket Strainer
SureFlow BWEB150SS Stainless Steel Fabricated Basket Strainer
SKU:BAS-5dd2ca
SureFlow BWEB150SS Stainless Steel Basket Strainer for efficient, safe filtration in industrial settings.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
SureFlow BWEB150SS Stainless Steel Fabricated Basket Strainer
$799.99
Quantity: 1
Claim Your Seller Account
SureFlow BWEB150SS Stainless Steel Fabricated Basket Strainer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow BWEB150SS 14-inch Stainless Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is a premium solution designed for petrochemical applications, now a standard choice across industries. Featuring a unique quick-opening closure for easy basket removal and cleaning, this strainer ensures optimal performance and safety. Crafted with durable stainless steel construction and O-ring seal technology, it offers reliable sealing and efficient operation. With options for customizations like special alloys, larger sizes, and various end connections, this strainer meets diverse institutional needs while adhering to ISO 9001:2008 standards.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

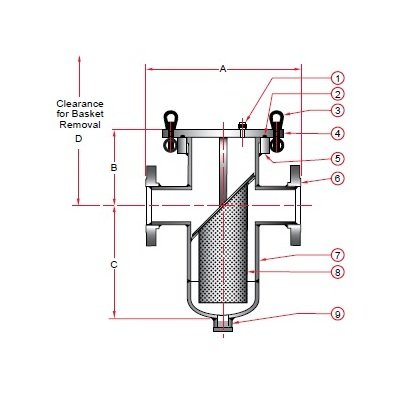

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
18 in
Dimensions Dimension A
29 1/8 in
Dimensions Dimension B
17 3/8 in
Dimensions Dimension C
32 in
Dimensions Dimension D
60 in
Dimensions Prefix Size
1400
Dimensions Size
14 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
