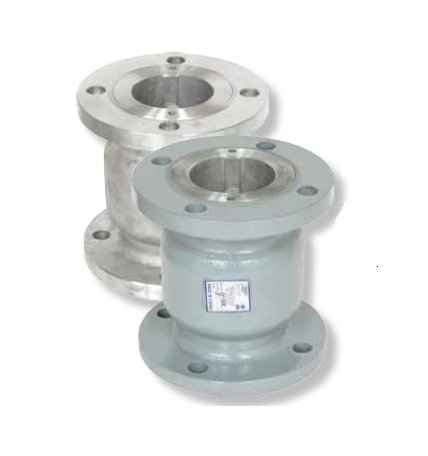

SureFlow CF150C 12 Inch Cast Steel Silent Globe Check Valve
SureFlow CF150C 12 Inch Cast Steel Silent Globe Check Valve
SKU:DOU-a59f33
Ensure smooth water flow with the ASME Class 150 SureFlow CF150C 12 Inch Silent Globe Check Valve, ideal for preventing water hammer and surges upon closure.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
SureFlow CF150C 12 Inch Cast Steel Silent Globe Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
SureFlow CF150C 12 Inch Cast Steel Silent Globe Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CF150C Silent Globe Check Valve ensures smooth water flow with its guided disc design, preventing water hammer and surges upon valve closure. Operating quietly in both vertical and horizontal positions, this valve boasts ASME Class 150 and ISO 9001:2008 certifications. Constructed with durable materials like cast steel and stainless steel, this valve maintains high performance even at up to 285 psi of pressure at 100°F. Recommended for industrial use, the CF150C provides reliability and efficiency in water, oil, and gas systems.
Product Specifications

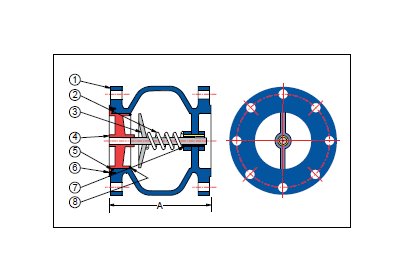

Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
18 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
321 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
2,575
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Specifications Orientation
Horizontal | Vertical
