Sureflow CF150SSC 10-inch Cast Stainless Steel Silent Globe Check Valve
Sureflow CF150SSC 10-inch Cast Stainless Steel Silent Globe Check Valve
SKU:DOU-79fd54
Sureflow CF150SSC 10" Cast Stainless Steel Silent Globe Check Valve - Prevents flow reversal, eliminates water hammer, ASME Class 150 certified.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sureflow CF150SSC 10-inch Cast Stainless Steel Silent Globe Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sureflow CF150SSC 10-inch Cast Stainless Steel Silent Globe Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

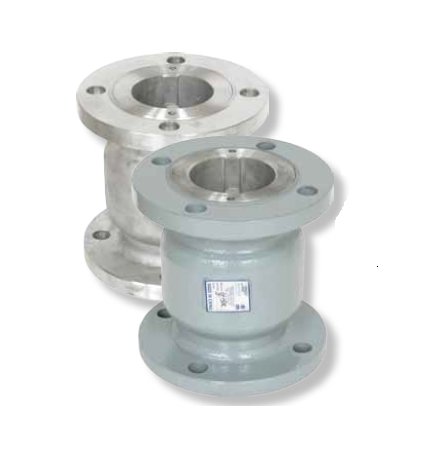

The Sureflow CF150SSC is a high-quality 10-inch cast stainless steel silent globe check valve designed to prevent flow reversal, eliminating water hammer and system surges. With a guided disc for quiet operation and ASME Class 150 certification, it ensures reliable performance in both horizontal and vertical installations. This valve meets ISO 9001:2008 standards and features durable construction with materials like stainless steel and Buna-N for optional resilient seating.
Product Specifications
Construction Construction

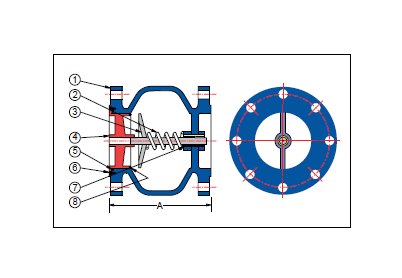

Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
14 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
197 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
1,700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Specifications Orientation
Horizontal | Vertical
