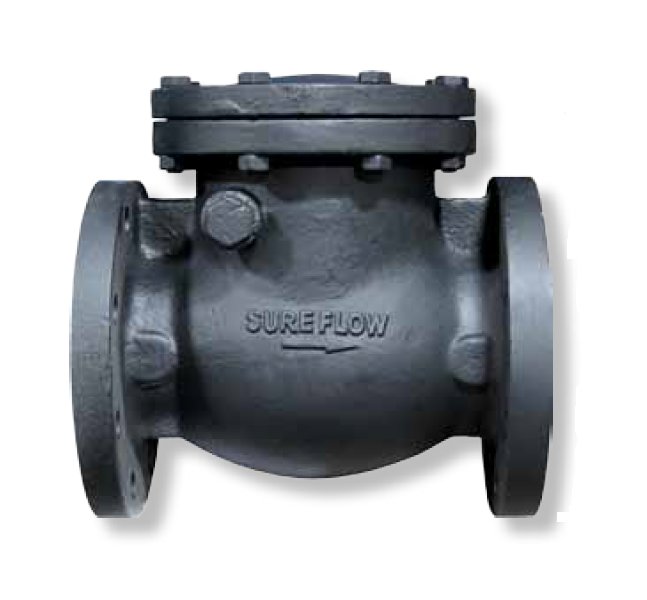

SureFlow CSF125IB 12" Cast Iron Horizontal Swing Check Valve with Flanged End
SureFlow CSF125IB 12" Cast Iron Horizontal Swing Check Valve with Flanged End
SKU:DOU-01ef4e
Reliable SureFlow CSF125IB 12" Cast Iron Check Valve for industrial applications
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
SureFlow CSF125IB 12" Cast Iron Horizontal Swing Check Valve with Flanged End
$699.99
Quantity: 1
Claim Your Seller Account
SureFlow CSF125IB 12" Cast Iron Horizontal Swing Check Valve with Flanged End
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CSF125IB 12-inch Cast Iron Horizontal Swing Check Valve is designed for reliable performance in industrial applications. Featuring a cast iron body, bronze seat ring, and disc ring, this valve ensures a superior sealing effect. With ASME Class 125 and ISO 9001:2008 certifications, it meets industry standards for quality and durability. The valve is constructed with precision materials such as stainless steel hanger pins and B62 disc rings for extended longevity and optimal functionality. Trust SureFlow for efficient fluid control solutions that exceed expectations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

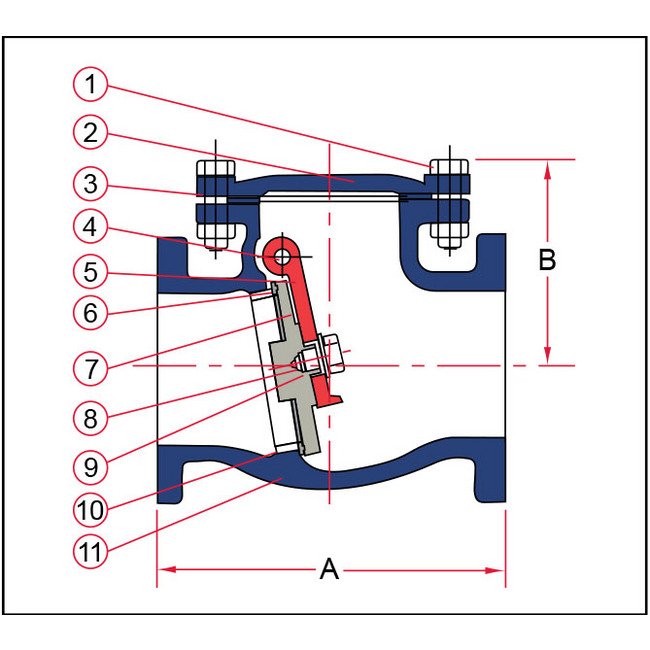

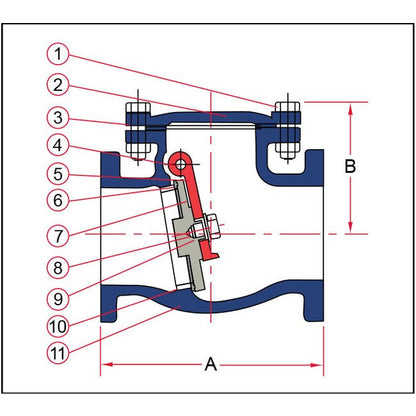

Construction Construction
Item - 1Description - Cover BoltingMaterial - SteelItem - 2Description - CoverMaterial - A126 Class BItem - 3Description - GasketMaterial - GraphiteItem - 4Description - Hanger PinMaterial - Stainless SteelItem - 5Description - HangerMaterial - A126 Class BItem - 6Description - Disc RingMaterial - B62Item - 7Description - DiscMaterial - A126 Class BItem - 8Description - Disc WasherMaterial - SteelItem - 9Description - Disc BoltMaterial - SteelItem - 10Description - Seat RingMaterial - B62Item - 11Description - Cast BodyMaterial - A126 Class B
Dimensions Dimension A
27 1/2 in
Dimensions Dimension B
13 3/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
858 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
