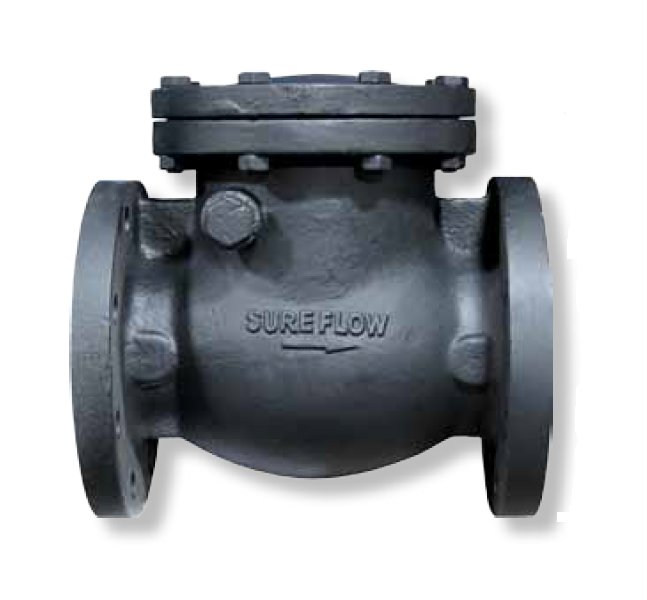

SureFlow CSF125IB 3-Inch Cast Iron Swing Check Valve with Flanged End

SureFlow CSF125IB 3-Inch Cast Iron Swing Check Valve with Flanged End

DOU-65cd53

Reliable SureFlow 3-Inch Cast Iron Swing Check Valve for industrial fluid control. ASME Class 125 & ISO 9001:2008 certified.

$249.99
$249.99
Sale

Initiate Order

SureFlow CSF125IB 3-Inch Cast Iron Swing Check Valve with Flanged End

SureFlow CSF125IB 3-Inch Cast Iron Swing Check Valve with Flanged End

$249.99

Quantity: 1

Claim Your Seller Account

SureFlow CSF125IB 3-Inch Cast Iron Swing Check Valve with Flanged End

SureFlow CSF125IB 3-Inch Cast Iron Swing Check Valve with Flanged End

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SureFlow CSF125IB 3-Inch Cast Iron Horizontal Swing Check Valve with Flanged End is designed for reliable fluid control in industrial applications. With a cast iron body, bronze seat ring, and disc ring, it ensures superior sealing compared to standard iron valves. Operating at 200 psi pressure and meeting ASME Class 125 and ISO 9001:2008 standards, this valve offers durability and versatility. Its construction features stainless steel hanger pin, B62 disc ring, and A126 Class B materials for robust performance. Trust SureFlow for quality and compliance in fluid management.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

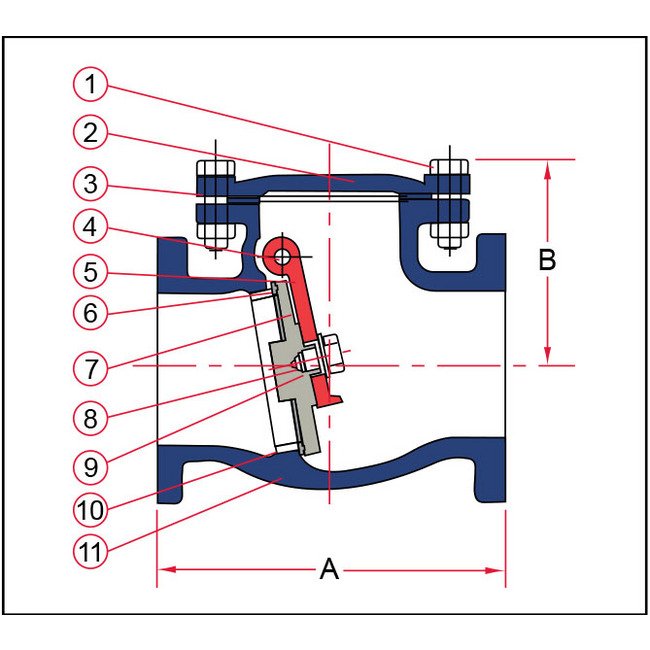

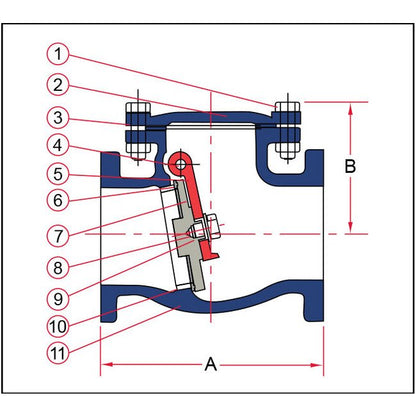

Construction Construction
Item - 1Description - Cover BoltingMaterial - SteelItem - 2Description - CoverMaterial - A126 Class BItem - 3Description - GasketMaterial - GraphiteItem - 4Description - Hanger PinMaterial - Stainless SteelItem - 5Description - HangerMaterial - A126 Class BItem - 6Description - Disc RingMaterial - B62Item - 7Description - DiscMaterial - A126 Class BItem - 8Description - Disc WasherMaterial - SteelItem - 9Description - Disc BoltMaterial - SteelItem - 10Description - Seat RingMaterial - B62Item - 11Description - Cast BodyMaterial - A126 Class B
Dimensions Dimension A
9 1/2 in
Dimensions Dimension B
6 1/8 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
57 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
