SureFlow CSF125IB 5 Inch Cast Iron Swing Check Valve with Flanged End
SureFlow CSF125IB 5 Inch Cast Iron Swing Check Valve with Flanged End
SKU:DOU-5335ca
SureFlow CSF125IB 5" Cast Iron Swing Check Valve: Durable, high-performance valve with ASME Class 125 & ISO 9001:2008 certifications
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
SureFlow CSF125IB 5 Inch Cast Iron Swing Check Valve with Flanged End
$349.99
Quantity: 1
Claim Your Seller Account
SureFlow CSF125IB 5 Inch Cast Iron Swing Check Valve with Flanged End
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

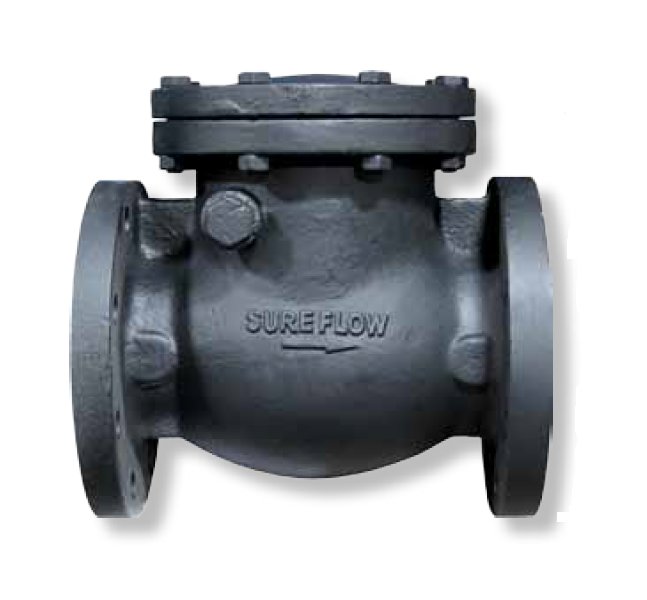

The SureFlow CSF125IB 5 Inch Cast Iron Horizontal Swing Check Valve with Flanged End is designed for optimal performance and durability in industrial applications. Featuring a cast iron body, cover, and bronze seat ring, this valve ensures a secure sealing effect, surpassing standard iron facing. It is engineered to withstand varying temperatures and fluid conditions, meeting American Society of Mechanical Engineers (ASME) Class 125 and International Organization for Standardization (ISO) 9001:2008 (Intertek) certifications. With a bronze disc ring and a sturdy construction including stainless steel hanger pin and graphite gasket, this valve offers reliability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

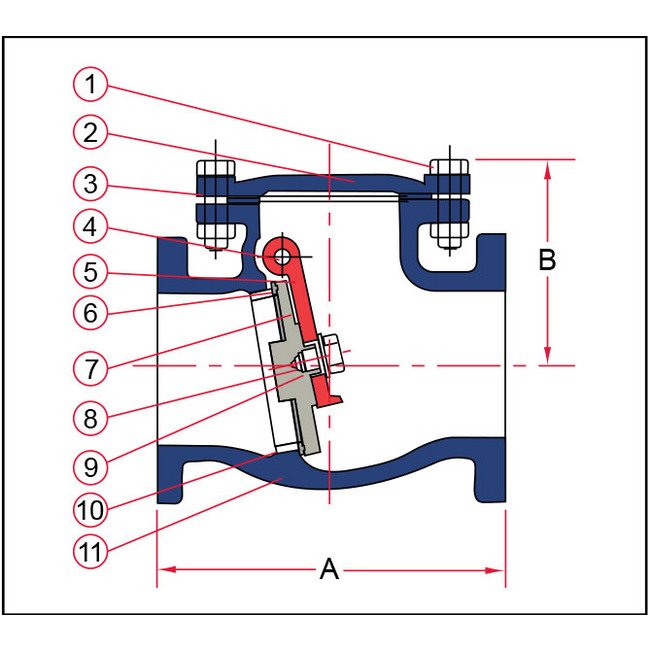

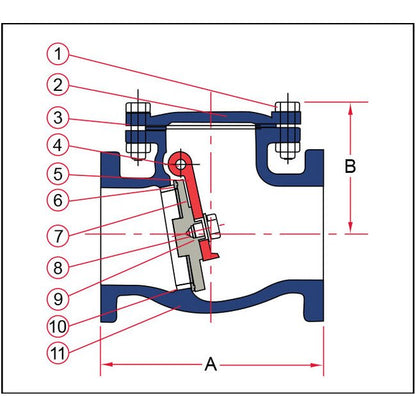

Construction Construction
Item - 1Description - Cover BoltingMaterial - SteelItem - 2Description - CoverMaterial - A126 Class BItem - 3Description - GasketMaterial - GraphiteItem - 4Description - Hanger PinMaterial - Stainless SteelItem - 5Description - HangerMaterial - A126 Class BItem - 6Description - Disc RingMaterial - B62Item - 7Description - DiscMaterial - A126 Class BItem - 8Description - Disc WasherMaterial - SteelItem - 9Description - Disc BoltMaterial - SteelItem - 10Description - Seat RingMaterial - B62Item - 11Description - Cast BodyMaterial - A126 Class B
Dimensions Dimension A
13 in
Dimensions Dimension B
9 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
134 lb
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
