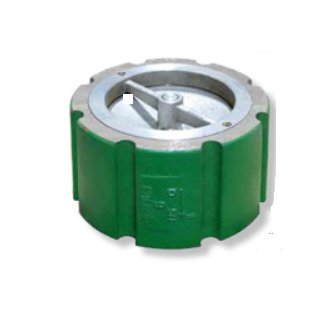

SureFlow CW125ISC 10 Inch Cast Iron Silent Wafer Check Valve
SureFlow CW125ISC 10 Inch Cast Iron Silent Wafer Check Valve
SKU:DOU-0b43be
Prevent flow reversal and water hammer with SureFlow CW125ISC 10 Inch Silent Wafer Check Valve. ASME Class 125 and ISO 9001:2008 certified for quality assurance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
SureFlow CW125ISC 10 Inch Cast Iron Silent Wafer Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
SureFlow CW125ISC 10 Inch Cast Iron Silent Wafer Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CW125ISC 10 Inch Cast Iron Silent Wafer Check Valve is a reliable solution to prevent flow reversal and eliminate water hammer. With a guided disc for efficient closure, this valve ensures quiet operation in both vertical and horizontal installations. Certified by ASME Class 125 and ISO 9001:2008, this valve meets rigorous industry standards. Constructed with high-quality materials like Cast Iron and Stainless Steel, it offers durability and reliability for various applications.
Product Specifications

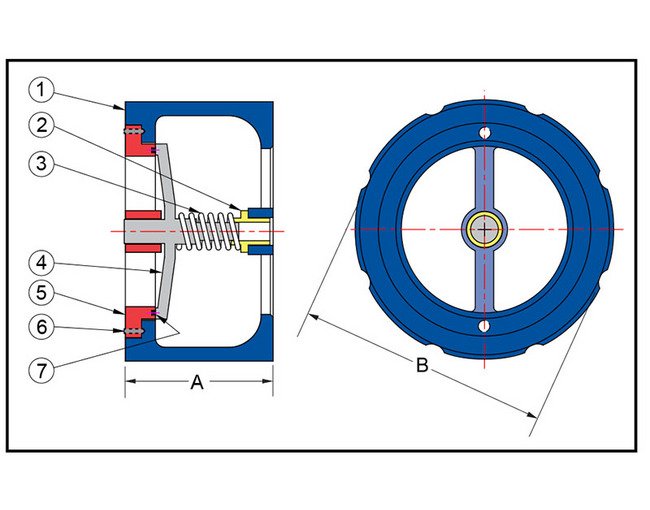

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
8 1/4 in
Dimensions Dimension B
13 1/8 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
140 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
1,200
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
