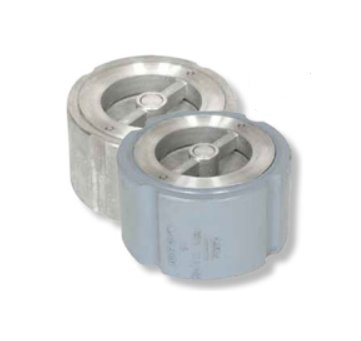

SureFlow CW150 2 1/2" Cast Steel Silent Wafer Check Valve
SureFlow CW150 2 1/2" Cast Steel Silent Wafer Check Valve
SKU:DOU-1115ae
Ensure smooth flow with SureFlow CW150 2 1/2" Cast Steel Silent Wafer Check Valve. Quiet, efficient, and ASME Class 150 & ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
SureFlow CW150 2 1/2" Cast Steel Silent Wafer Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
SureFlow CW150 2 1/2" Cast Steel Silent Wafer Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CW150 2 1/2" Cast Steel Silent Wafer Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. Designed for quiet operation, it features a guided disc and can be installed vertically or horizontally. With a pressure rating of 285 psi at 100°F, this valve meets ASME Class 150 and ISO 9001:2008 standards, offering reliability and performance in demanding environments. Constructed with high-quality materials including A216 Gr. WCB and A351 Gr. CF8M, this valve ensures durability and longevity.

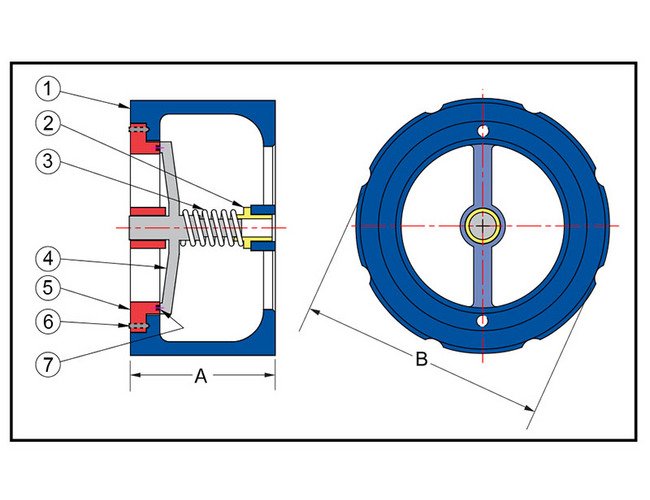

Product Specifications
Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
4 3/4 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
9 lb
Dimensions Size
2 1/2 in
Dimensions Valve Flow Coefficient Cv
88
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
