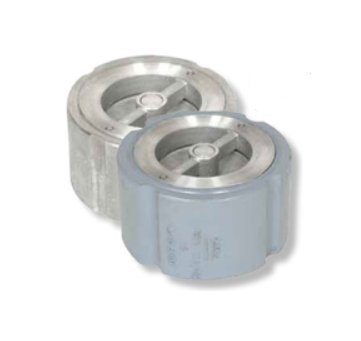

SureFlow CW150SS 5 Inch Stainless Steel Silent Wafer Check Valve
SureFlow CW150SS 5 Inch Stainless Steel Silent Wafer Check Valve
SKU:DOU-ae7b3e
Prevent flow reversal and system surges with the SureFlow CW150SS 5 Inch Stainless Steel Check Valve. ASME Class 150 & ISO 9001:2008 certified.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SureFlow CW150SS 5 Inch Stainless Steel Silent Wafer Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
SureFlow CW150SS 5 Inch Stainless Steel Silent Wafer Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CW150SS 5 Inch Cast Stainless Steel Silent Wafer Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. With quiet operation, a guided disc, and versatile installation options, this valve ensures optimal performance. It meets ASME Class 150 and ISO 9001:2008 standards, making it ideal for demanding industrial applications.
Product Specifications
Construction Construction

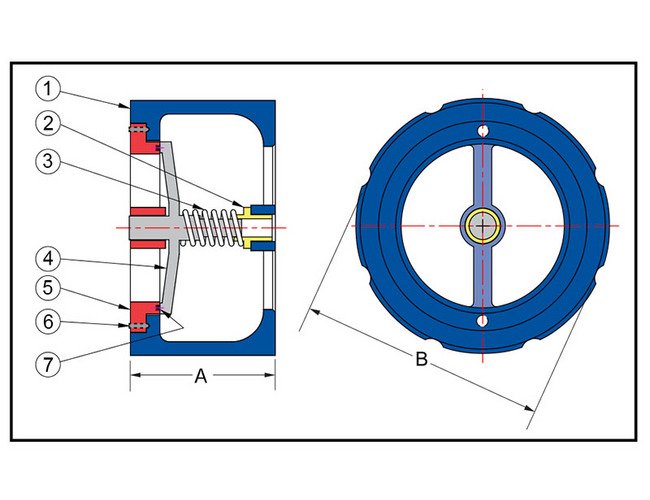

Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
4 5/8 in
Dimensions Dimension B
7 5/8 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
32 lb
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
340
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
