The SureFlow CW150SS 8 Inch Cast Stainless Steel Silent Wafer Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. With quiet guided disc operation, this valve can be installed vertically or horizontally. Meeting ASME Class 150 and ISO 9001:2008 standards, it features durable construction with materials like A351 Gr. CF8M stainless steel. Ideal for applications requiring reliable, efficient fluid flow control.
Product Specifications
Construction Construction

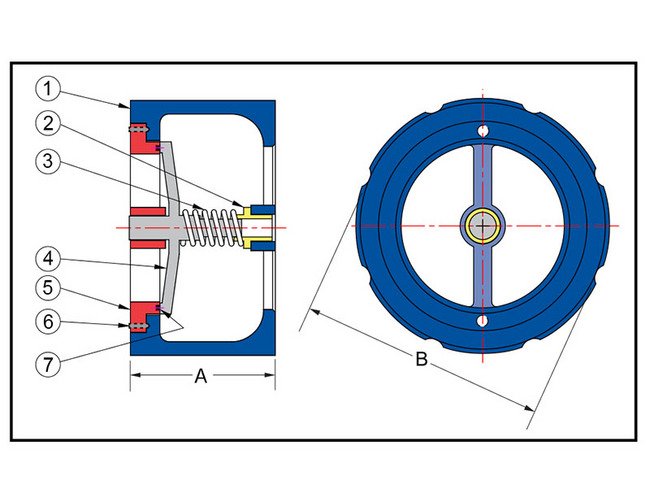

Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - BushingMaterial - Stainless SteelItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - A351 Gr. CF8MItem - 5Description - SeatMaterial - A351 Gr. CF8MItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
6 1/2 in
Dimensions Dimension B
10 3/4 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
100 lb
Dimensions Size
8 in
Dimensions Valve Flow Coefficient Cv
720
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
