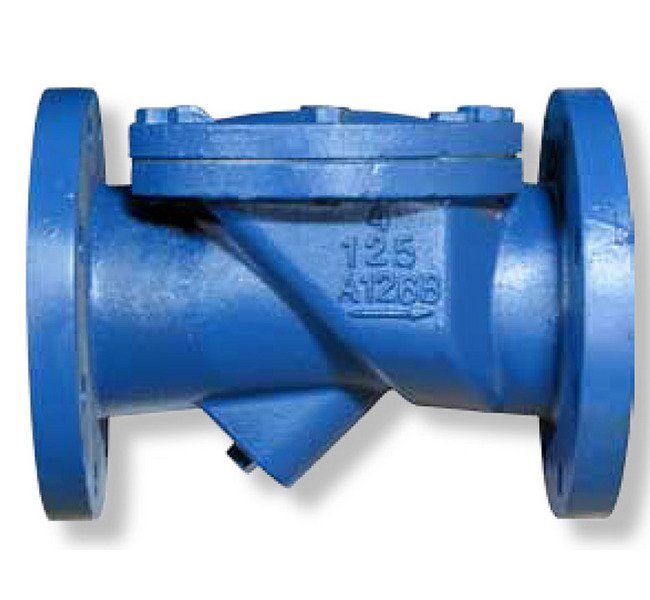

SureFlow CXF125IV 10in Ductile Iron Swing Check Valve
SureFlow CXF125IV 10in Ductile Iron Swing Check Valve
SKU:DOU-5238f1
Reliable SureFlow 10in Swing Check Valve for precise control in municipal and industrial applications.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
SureFlow CXF125IV 10in Ductile Iron Swing Check Valve
$749.99
Quantity: 1
Claim Your Seller Account
SureFlow CXF125IV 10in Ductile Iron Swing Check Valve
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CXF125IV 10-inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is a robust solution ideal for municipal and industrial applications. Featuring an ASME Class 125 flanged body and epoxy-coated internal body, this valve ensures durability and reliability. The one-piece molded disc with a steel reinforced insert allows for 100% uninterrupted flow and easy repair without valve removal. Operating at 200 psi pressure and meeting ASME Class 125 and ISO 9001:2008 standards, this valve is a top choice for applications requiring precision control and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

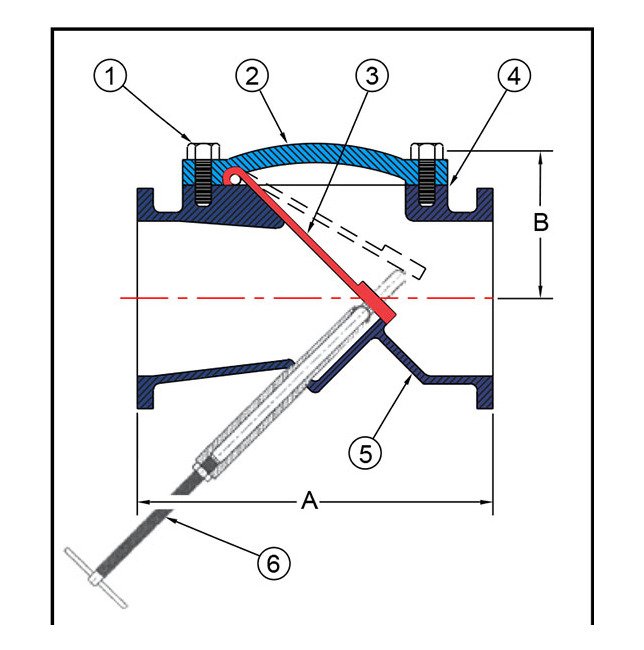

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
24 1/2 in
Dimensions Dimension B
9 7/8 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
525 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
3,050
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
