SureFlow CXF125IV 18" Ductile Iron Swing Check Valve
SureFlow CXF125IV 18" Ductile Iron Swing Check Valve
SKU:DOU-cfc0b8
SureFlow CXF125IV 18" Elastic Swing Check Valve for municipal and industrial applications, ASME Class 125 compliant.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
SureFlow CXF125IV 18" Ductile Iron Swing Check Valve
$1,899.99
Quantity: 1
Claim Your Seller Account
SureFlow CXF125IV 18" Ductile Iron Swing Check Valve
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow CXF125IV 18" Ductile Iron Elastic Swing Check Valve with Flanged End Connections is a reliable choice for municipal and industrial applications. Featuring a durable ductile iron body with ASME Class 125 flanges, epoxy-coated internal body, and a one-piece molded disc with a steel reinforced insert for secure closure. This valve allows 100% uninterrupted flow in the open position and offers easy repair of the disc hinge without valve removal. Suitable for various fluids with a Pressure rating of 150 psi at 150°F water, oil, gas temperature. Compliant with ASME Class 125 and ISO 9001:2008 standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.

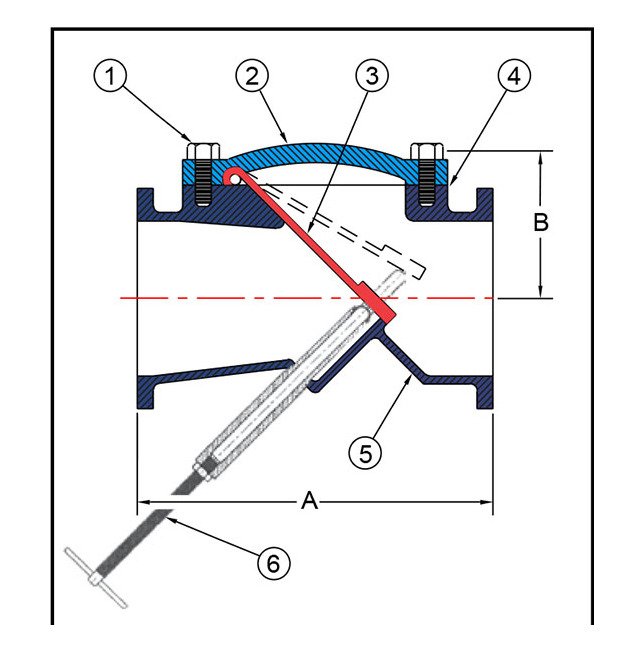

Construction Construction
Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
35 15/16 in
Dimensions Dimension B
17 1/4 in
Dimensions Drain Size
3 in
Dimensions Prefix Size
1800
Dimensions Shipping Weight
1,450 lb
Dimensions Size
18 in
Dimensions Valve Flow Coefficient Cv
11,200
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
