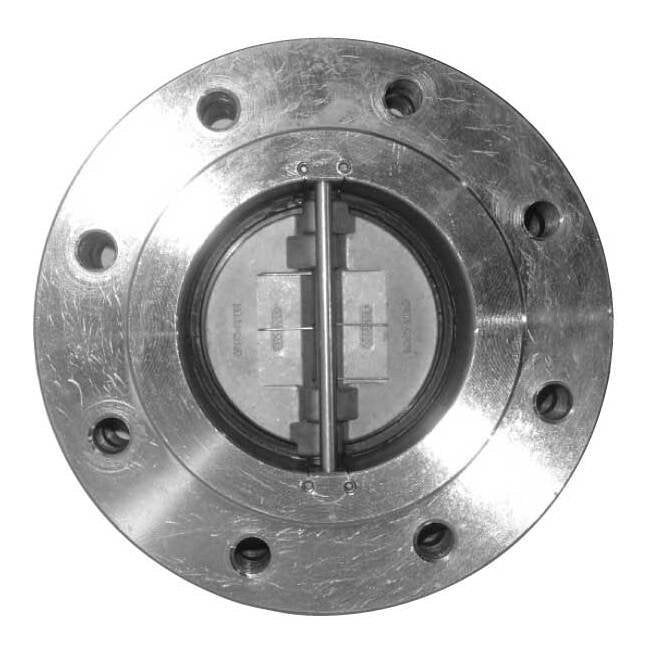

SureFlow FE300SSL 4 Inch Retainerless Carbon Steel Lug Double Door Check Valve

Name: SureFlow FE300SSL 4 Inch Retainerless Carbon Steel Lug Double Door Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-831aad
Price: 239.99 USD
Availability: OutOfStock

SKU:DOU-831aad

SureFlow FE300SSL 4" Carbon Steel Lug Double Door Check Valve - Reliable, durable, and ISO 9001:2008 compliant.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SureFlow FE300SSL 4 Inch Carbon Steel Lug Double Door Check Valve is a reliable solution ensuring optimal flow control. Crafted with high-grade stainless steel, this valve features a retainerless design for easy maintenance. With a double door mechanism, it offers enhanced performance and durability. Compliant with ISO 9001:2008 standards, this valve is engineered for precision and longevity in industrial settings.

Product Specifications

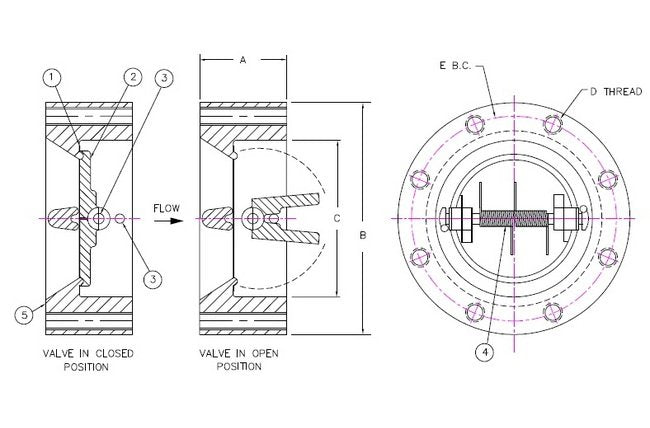

Dimensions Bolt Circle Bc E

7 7/8 in

Dimensions Dimension A

2 7/8 in

Dimensions Dimension B

10 in

Dimensions Dimension C

4 1/2 in

Dimensions Size

4 in

Dimensions Thread Size D

3/4-10 in

Dimensions Thread Type

Unified National Coarse (UNC) Thread

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1

Specifications Check Valve Type

Double Door

Specifications Material

Stainless Steel

Specifications Scale

Not to Scale (NTS)

SureFlow FE300SSL 4 Inch Retainerless Carbon Steel Lug Double Door Check Valve
