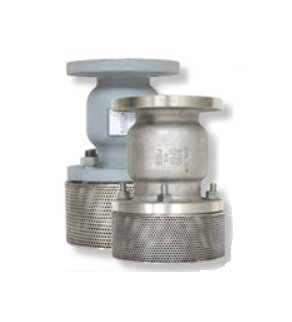

SureFlow FV150 3-Inch Cast Steel Silent Seat Foot Valve
SureFlow FV150 3-Inch Cast Steel Silent Seat Foot Valve
SKU:DOU-a9afe4
SureFlow FV150 3-Inch Silent Seat Foot Valve, low head loss design, ASME Class 125 & ISO 9001:2008 compliant
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
SureFlow FV150 3-Inch Cast Steel Silent Seat Foot Valve
$289.99
Quantity: 1
Claim Your Seller Account
SureFlow FV150 3-Inch Cast Steel Silent Seat Foot Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow FV150 3-Inch Cast Steel Silent Seat Foot Valve with Flanged End Connections is designed for low head loss and features heavy-duty stainless steel basket screening. With a Buna-N Quad Ring ensuring 'drop-tight seating' at higher pressure ranges, this foot valve provides reliable performance. Meeting industry standards like ASME Class 125 and ISO 9001:2008, this valve offers positive shut-off without extra loading on the seal, silent operation, and a durable construction for long-term use.
Product Specifications

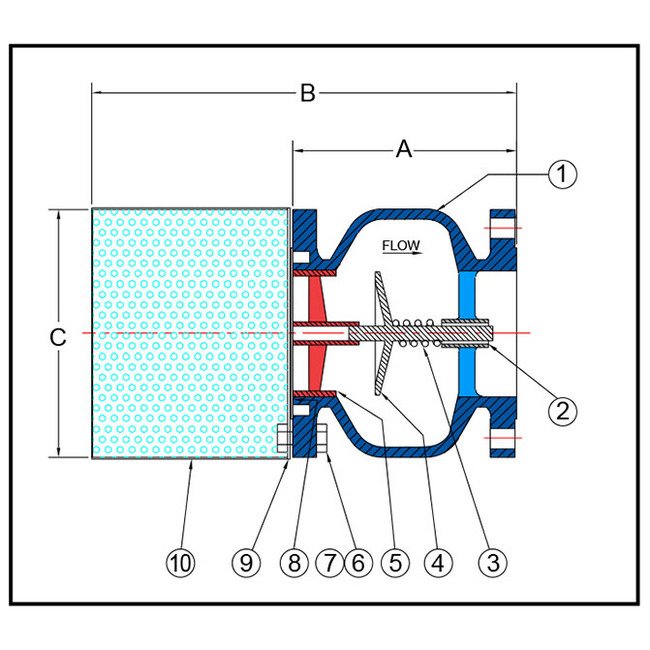

Construction Construction
Item - 1Description - BodyItem - 2Description - BushingItem - 3Description - SpringItem - 4Description - DiscItem - 5Description - Quad RingItem - 6Description - StudsItem - 7Description - NutsItem - 8Description - O-RingItem - 9Description - Plate FlangeItem - 10Description - Screen Assembly
Dimensions Dimension A
7 5/8 in
Dimensions Dimension B
10 3/4 in
Dimensions Dimension C
7 3/4 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
45 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
118
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Standard Features Standard Features
The seating design provides positive shut-off at all pressure ranges without additional loading on the seal.A Buna-N Quad Ring is standard on Foot Valves size 6" and larger.Valve comes standard with 1/8" perf. Stainless Steel Screen. Options are available.Heavy duty stainless steel screening, with flow area 3 to 4 times that of pipe area.Silent operation, by design of disc, stroke and linear closing characteristics.
