The SureFlow FVCEXF125 Ductile Iron Elastic Swing Foot Valve is designed for municipal and industrial applications, featuring a durable ductile iron body with ASME Class 125 flanges. With its epoxy-coated internal body and steel-reinforced one-piece disc, it ensures reliable closure while allowing uninterrupted flow. Ideal for continuous flow applications, this valve is versatile for both horizontal and vertical installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

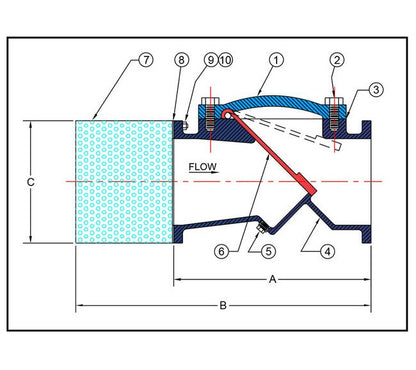

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
39 15/16 in
Dimensions Dimension B
55 7/16 in
Dimensions Dimension C
27 3/4 in
Dimensions Drain Size
3 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
1,890 lb
Dimensions Size
20 in
Dimensions Valve Flow Coefficient Cv
11,360
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
