SureFlow FW300SS 12 Inch Stainless Steel Y Strainer
SureFlow FW300SS 12 Inch Stainless Steel Y Strainer
SKU:FAB-abbf64
High-performance 12in Stainless Steel Y Strainer for precise filtration in industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
SureFlow FW300SS 12 Inch Stainless Steel Y Strainer
$699.99
Quantity: 1
Claim Your Seller Account
SureFlow FW300SS 12 Inch Stainless Steel Y Strainer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

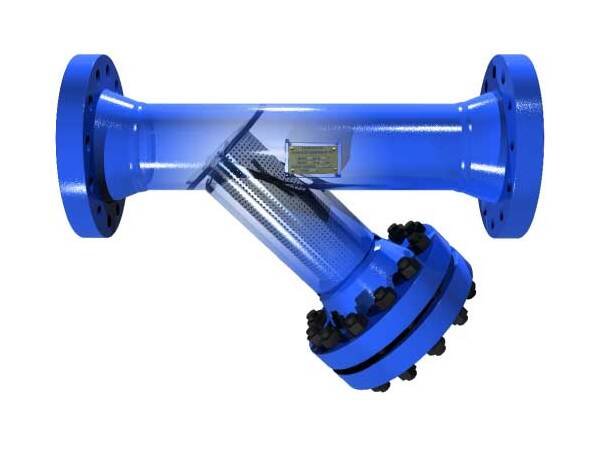

The SureFlow FW300SS 12 Inch Stainless Steel Fabricated Y Strainer is a top-of-the-line solution for industrial fluid filtration needs. Crafted with durable Stainless Steel, this Y Strainer is customizable for various applications, ensuring precision and quality performance. With ASME Section VIII, Div 1 U and UM CODE STAMP available, it meets stringent industry standards. Operating at 720 psi for water, oil, and gas and 300 psi for high-temperature steam, this Y Strainer offers optimal filtration and longevity. Additionally, it features a 0.125-inch screen opening for efficient particle removal and comes with a range of construction components for reliable operation.
Product Specifications
Construction Construction

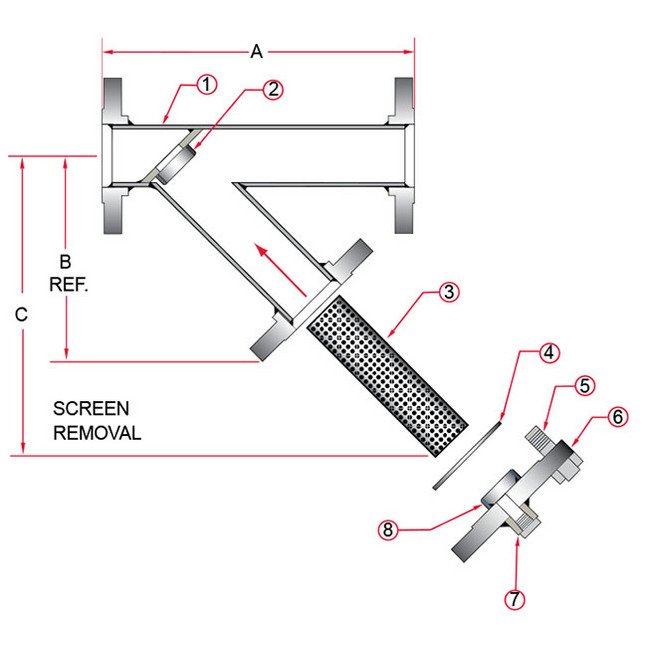

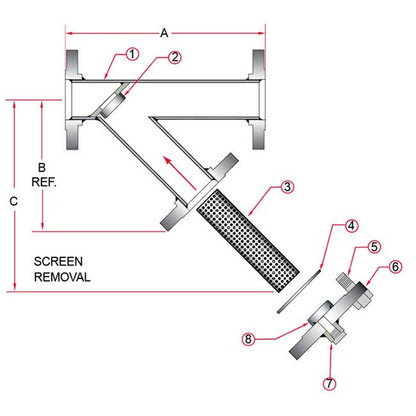

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
36 in
Dimensions Dimension B
24 in
Dimensions Dimension C
38 in
Dimensions Prefix Size
1200
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Connection Type
Fabricated
Specifications Material
Stainless Steel
Standard Screens Screen Opening
0.125 in
