SureFlow NPT Swivel Clamp Stainless Steel Basket Strainer
SureFlow NPT Swivel Clamp Stainless Steel Basket Strainer
SKU:BAS-a65f4f
SureFlow basket strainer for easy solid particulate removal, constructed from durable stainless steel with Quick Open Swivel Clamp Cover.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
SureFlow NPT Swivel Clamp Stainless Steel Basket Strainer
$299.99
Quantity: 1
Claim Your Seller Account
SureFlow NPT Swivel Clamp Stainless Steel Basket Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SureFlow NPT Swivel Clamp Stainless Steel Basket Strainer is designed for applications with high solid particulate content, enabling easy removal and disposal of captured debris. Constructed from ASTM A351 Grade CF8M Cast 316 Stainless Steel, it features a Quick Open Swivel Clamp Cover for tool-free screen removal. With a Pressure Rating of 275 psi at 100°F, this simplex basket strainer includes a durable stainless steel screen and fluorocarbon O-ring seals. Certified to ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)
Construction Screen Material
Stainless Steel

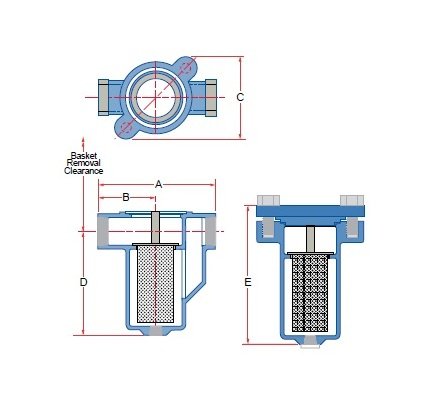

Dimensions Basket Removal Clearance
9 1/4 in
Dimensions Dimension A
9 5/8 in
Dimensions Dimension B
4 in
Dimensions Dimension C
6 5/8 in
Dimensions Dimension D
7 1/8 in
Dimensions Dimension E
9 3/4 in
Dimensions Drain Size
1 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
50 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
