The SureFlow YTC1500SS 2-Inch Cast Y Strainer is expertly crafted from ASTM A351 Grade CF8M Cast Stainless Steel, ensuring durability and reliability in demanding industrial environments. Featuring National Pipe Thread (NPT) or Socket Weld connections, this Y strainer offers precision filtration with a removable stainless steel screen. With operating pressures up to 3600 psi and a blow-off drain configuration, this strainer is suitable for horizontal or vertical pipelines, meeting ASME standards and ISO 9001:2008 certification.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel
Construction Screen Material
Stainless Steel

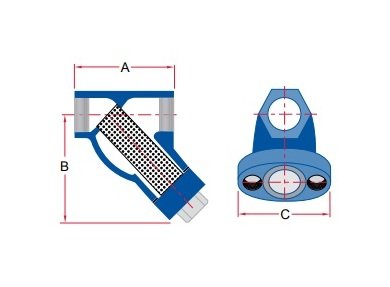

Dimensions Dimension A
8 5/8 in
Dimensions Dimension B
8 1/2 in
Dimensions Dimension C
9 1/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
68 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3600 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
