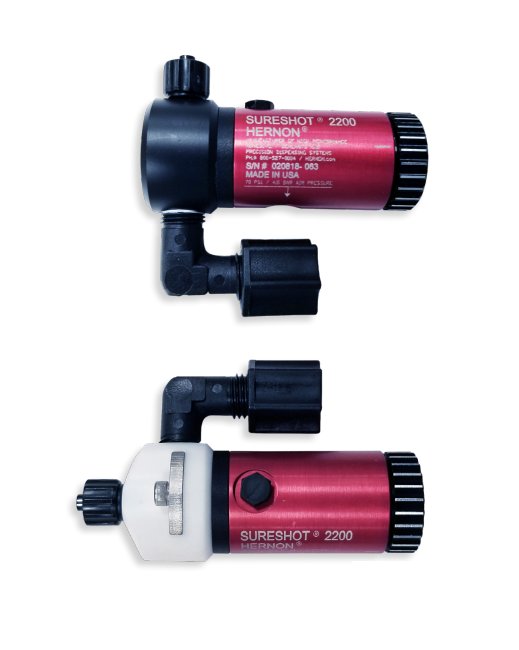

Sureshot® 2200 Series PTFE Dispensing Valve
Sureshot® 2200 Series PTFE Dispensing Valve
SKU:SUR-2de6dc
Precisely control fluid dispensing with the Sureshot® 2200 Series PTFE Valve. Rapid response, adjustable flow, and easy maintenance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sureshot® 2200 Series PTFE Dispensing Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sureshot® 2200 Series PTFE Dispensing Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sureshot® 2200 Series PTFE Dispensing Valve offers precise control for dispensing various fluids, including adhesives, sealants, lubricants, and fluxes. Its innovative seal-less design with an inert polymer diaphragm ensures actuator isolation, enabling rapid valve open time as short as 15 milliseconds. The valve's adjustable open/close stroke range of 0.025 to 0.76mm allows for quick response and reliable shutoff. With a compact size, adjustable fluid flow control, and easy cleaning, this valve is ideal for high-cycle applications with low maintenance requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

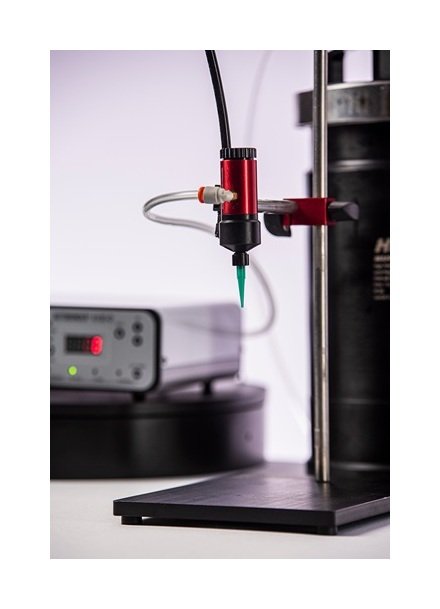

A conventional system shown here includes a Sureshot® 2200 series dispense valve with an R125 series pressure reservoir for adhesive / sealant supply, Autobonder® 2111 for dispense valve control of material supply, dispense valve / ON / OFF timing, dispense valve stand and needle kit.
Features Features
Compact weight and sizeAdjustable fluid flow controlPositive shutoffEasy cleaningCycle rate up to 500/minuteLow-maintenance design
Technical Specs Brands
Hernon Manufacturing, Inc
Technical Specs Diameter
1.062 in | 27 mm
Technical Specs Length
2.63 in | 66.8 mm
Technical Specs Material
Polytetrafluoroethylene (PTFE)
Technical Specs Warranty
Standard 1 year from purchase date
Technical Specs Weight
76 g | 2.68 oz
