Surface & Flush Mount Traffic Control Spike System
Surface & Flush Mount Traffic Control Spike System
SKU:TRA-c6d531
Ensure one-way traffic safety with Surface & Flush Mount Spike System for parking & industrial applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Surface & Flush Mount Traffic Control Spike System
$1,899.99
Quantity: 1
Claim Your Seller Account
Surface & Flush Mount Traffic Control Spike System
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

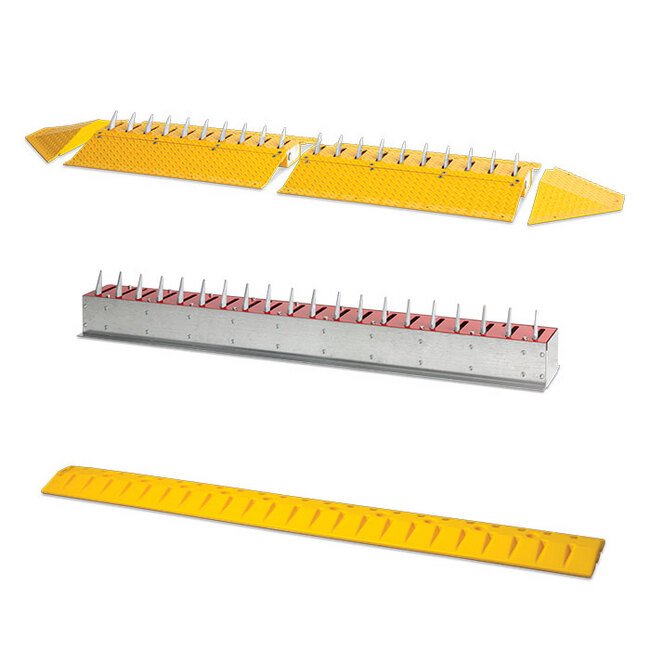

The Surface & Flush Mount Traffic Control Spike System offers a reliable solution to enforce one-way traffic, featuring surface and flush mount options with spring-loaded and weighted spikes. Ideal for parking, commercial/industrial, and maximum security applications, this system includes warning signs, LED signals, and speed bumps. With weight limits up to 20,000 Lb. per axle, durable construction, and easy installation, it ensures effective traffic control while preventing tire damage and wear. Must be used with caution in freezing weather conditions.
Product Specifications
Additional Information Additional Information

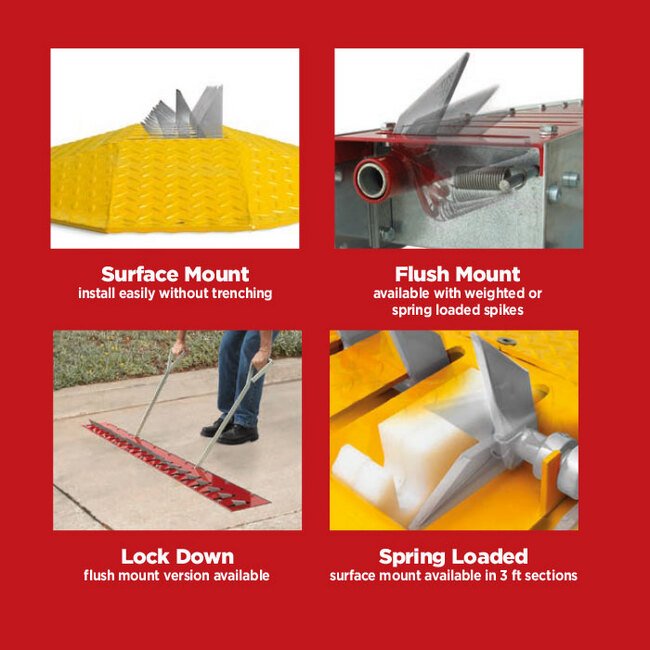

TRAFFIC CONTROL SPIKE SYSTEMSSurface and flush mount below ground options available. Surface spikes install easily without trenching and doubles as a speed bump. Spring loaded surface mount available in 3 foot sections, and flush mount below ground assembly available with weighted or spring loaded spikes. CAUTION: not to be used in areas subject to freezing weather with the potential for snow and ice accumulation.
Applications Applications
ParkingMixed UseCommercial/IndustrialSelf StorageMaximum Security
Key Features Key Features

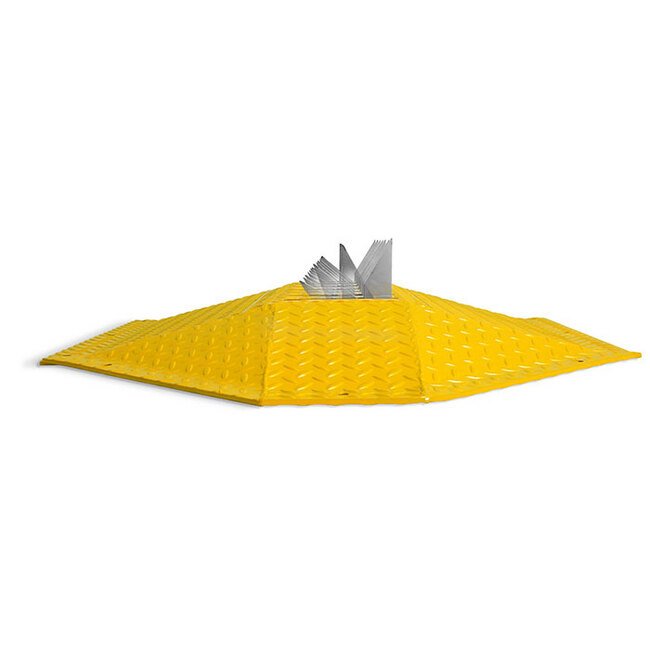

Surface Mount Traffic SpikesSpikes sections available in 3-foot sections.End caps provide a smooth end to the spike section.Torsion springs.Lock-down standard.Surface mount unit.1/4-inch diamond plate painted bright yellow for easy visibility.2-inch rise provides a built-in speed bump.Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exist.Speed bumps must always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage and excessive wear on the spike system.Do not use in areas subject to freezing temperatures with potential of snow and ice accumulation.20,000 Lb. per axle maximum weight limit.Flush MountIndividual spring loaded spikes.Stainless steel springs.Weight spikes (no springs) version available.Lock-down version available.Flush in-ground unit.Painted bright red for easy visibility.Ideal to enforce one-way traffic.Dimensions: 6.5 "H x 8.5 "W (at top) x 72"L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exist.Speed bumps must always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage and create excessive wear on the spike system.Do not use in areas subject to freezing temperatures with potential of snow and ice accumulation.Standard spike units 8,000 Lb. per axle weight limit.Heavy-Duty (HD) spike units maximum 20,000 Lb. per axle weight limit.Speed BumpMust be installed to slow vehicular traffic.Speed bumps are constructed from solid composite material.Speed bumps can be easily removed and re-installed.Painted bright yellow for easy visibility.Designed for installation on concrete surfaces only.
Specifications Mounting Type
Anchored to concrete surfaces only
Specifications Speed Bump Height
2 in
Specifications Speed Bump Length
72 in
Specifications Speed Bump Width
12 in
Specifications Surface Mount Traffic Spikes Height
6.5 in
Specifications Surface Mount Traffic Spikes Length
72 in
Specifications Surface Mount Traffic Spikes Width
8.5 in
Technical Specifications Technical Specifications

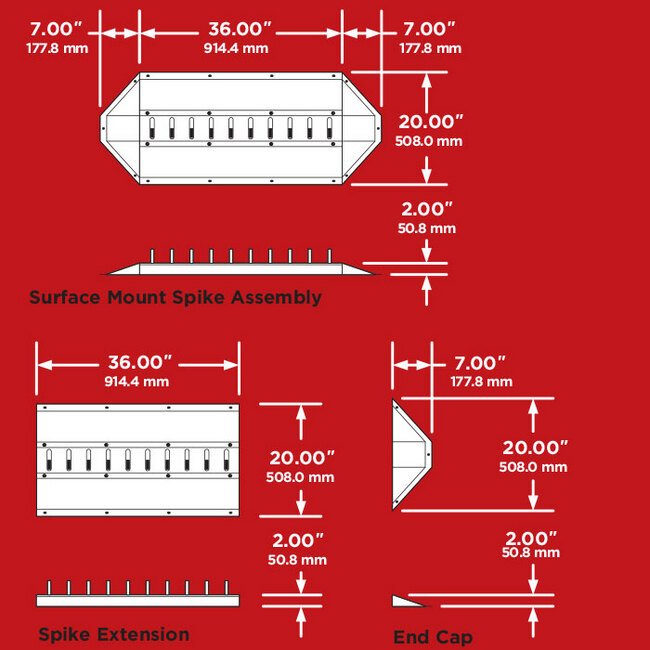

SURFACE MOUNT SPIKESMountingAnchored to concrete surfaces onlySpike operationSpring-loadedSpikes are ganged 3 and 4 together and use a torsion spring for operationEnd CapProvides a smooth end to the Spike sectionHousing1/4-inch diamond plate painted safety yellow2-inch rise provides a built-in speed bumpLock DownFeature allows Spikes to be locked in the "down" position allowing the traffic lane to be temporarily used for two-way trafficWeight Limit20,000 Lb. per axleFLUSH MOUNT SPIKESMountingFlush, in-ground unit anchored in concreteSpike operationSpring-loaded - each Spike has an independent stainless steel springWeighted - each Spike is independently counter weightedHousingGalvanized Steel to inhibit rusting. Top plate is painted bright red for easy visibilityLock Down OptionOptional feature allows Spikes to be locked in the "down" position allowing the traffic lane to be temporarily used for two-way trafficWeight Limit8,000 Lb. per axle. Heavy-duty flush units available with 20,000 weight limit per axle.SPEED BUMPMountingSurface mount, anchored to concrete surfaces only Solid composite material painted safety yellowInstallation and use of spike components in areas that are subject to freezing weather with potential for snow and ice accumulation is not recommended.Illuminated LED Warning Sign (1610-080) MUST be used with the installation of spike systems.
