SUTI Series 1/4in Tube OD Union Tee Fitting
SUTI Series 1/4in Tube OD Union Tee Fitting
SKU:SUT-423182
Efficiently connect fractional tubes with precision and safety using the SUTI Series 1/4in Tube OD Union Tee Fitting. Industry-changing design for enhanced productivity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SUTI Series 1/4in Tube OD Union Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SUTI Series 1/4in Tube OD Union Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

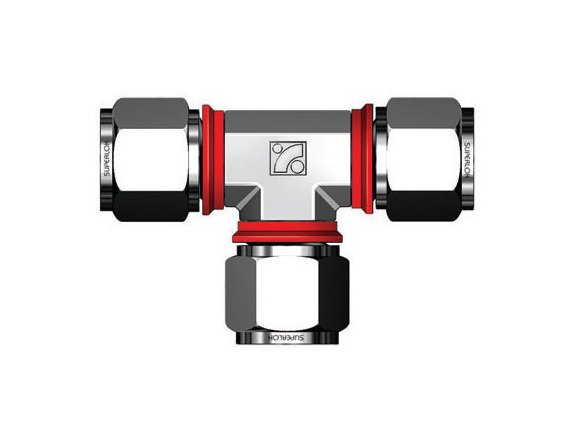

The SUTI Series 1/4 Inch Tube OD Union Tee Fitting is designed to connect fractional tubes efficiently and securely. Made from durable materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures a precise and reliable connection. Featuring i-Fitting® components for perfect compression and increased safety in high-pressure environments, this industry-changing design by BMT enhances productivity and reduces costs. With dimensions conforming to industry standards and innovative features like the built-in gap gauge check ring, this fitting is ideal for valve connections in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

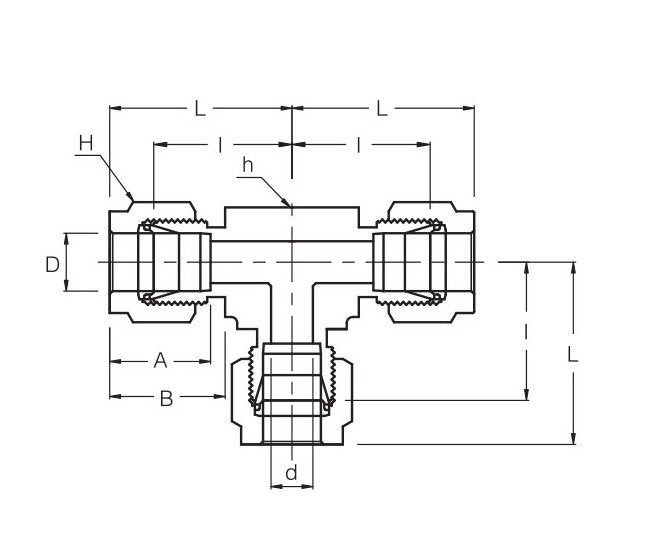

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
20.10 mm
Technical Specs Dimension L
27.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
